Lake Controller Operation Manual Rev 1.5.4
Modules Menu Reference
To configure routing for a Super Module:
1. From HOME, tap MODULES.
2. Select a Super Module in the work area.
3. Tap SM ROUTING.

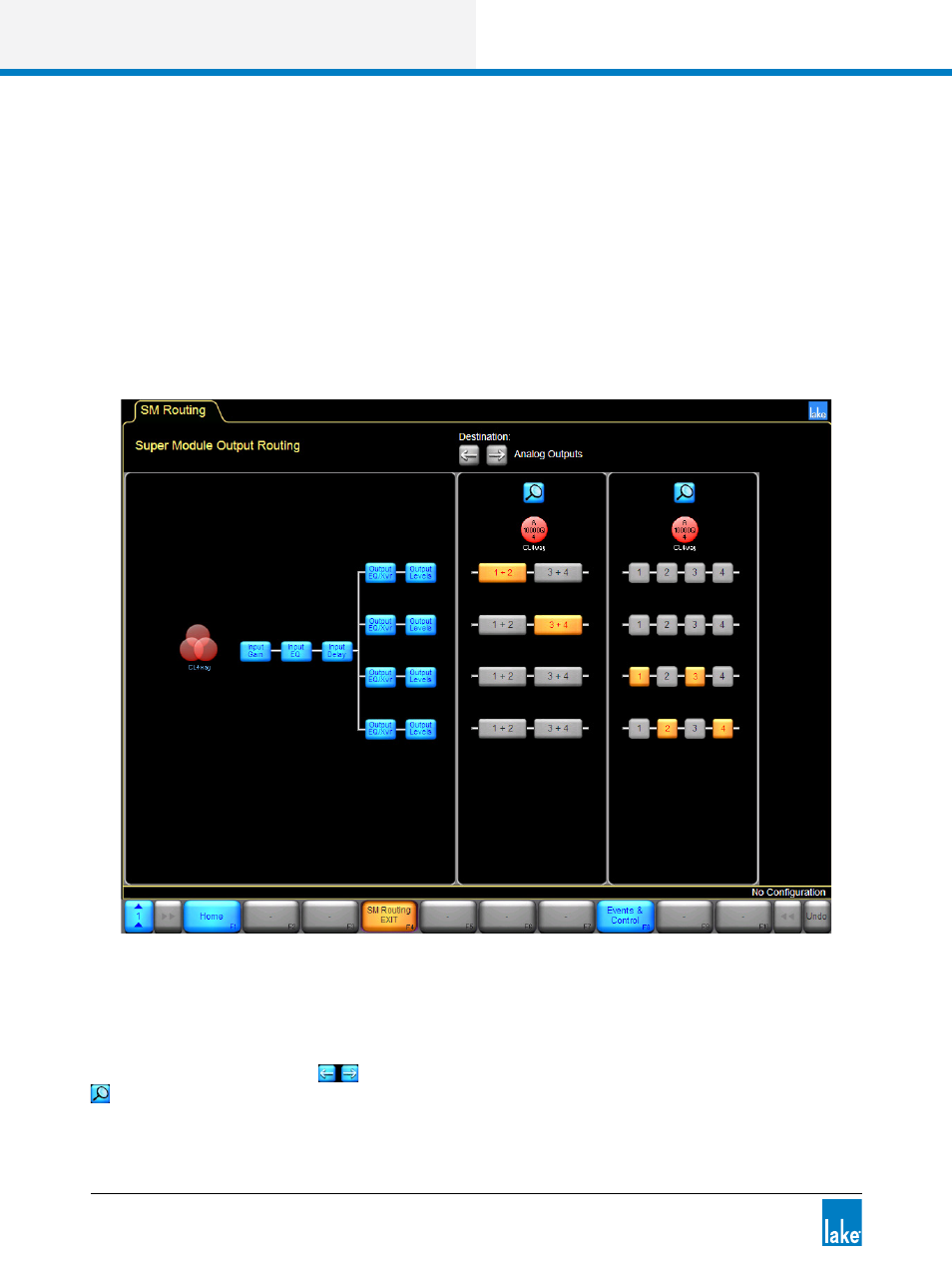

Figure 8-33 shows the SM ROUTING screen for a stereo Classic 4-Way configuration split across two
Lab.gruppen PLM 10000Q amplifiers. The sub and low channels are being driven by one amplifier in
Bridged Mode, and the mid and high channels by a separate amplifier in normal mode.
Figure 8-33: SM Routing Screen
With this Super Module configuration, two 4-Way speakers can be controlled simultaneously via one Super
Module icon, with all changes to levels, EQ and crossover being duplicated in real time across both ampli-
fiers.
The DESTINATION arrow icons enable selection of available output types. The magnifying glass icon
navigates to the I/O CONFIG screen of the associated Frame. Please refer to section 8.2 for further
details.
