42
Lake Controller Operation Manual Rev 1.5.4
Lake Controller Tutorial
The last item on the left side of the I/O CONFIG page allows remote control of Iso-Float ™ . This powerful
feature allows you to troubleshoot grounding issues remotely from the Controller.

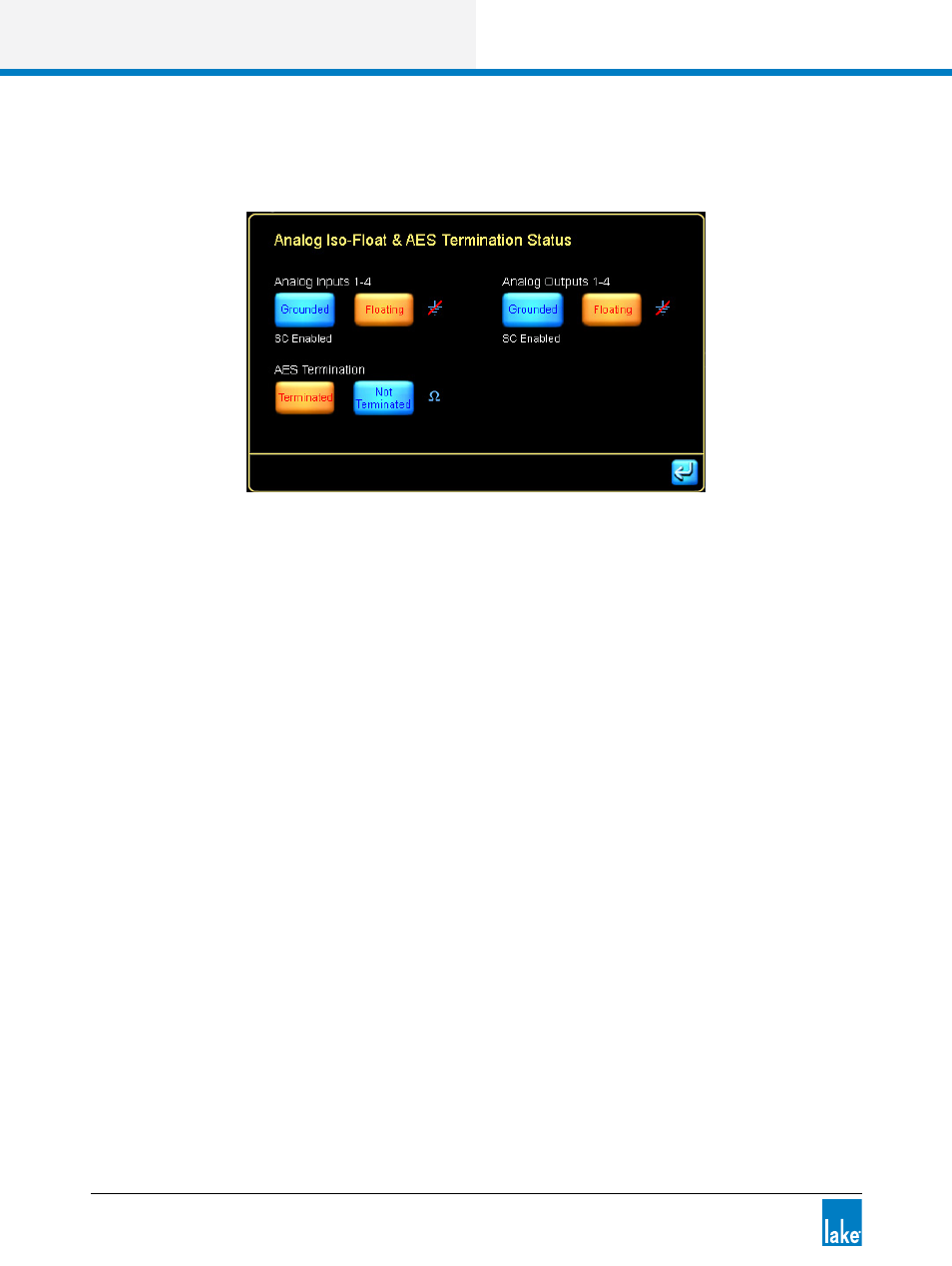

Figure 4-26: Analog Iso-Float Status Screen
The ANALOG ISO-FLOAT STATUS window shows you the current state of the device hardware and allows
you to make changes to the grounding state of each analog converter card.
After closing the ANALOG ISO-FLOAT STATUS pop-up window, return to the Main page by tapping the
HOME button.
4.3.6 Dante
Dante audio networking technology from Audinate provides a hassle-free digital audio networking solution
for Dante-enabled Lake devices providing reliable, sample-accurate, low-latency audio distribution over
Ethernet.
Dante provides a reliable, digital-audio networking system with complete flexibility, ease of use, and
cost-effectiveness. With innovative features such as Zen
™ , Dante-enabled Lake devices automatically find
each other and also allow any Dante audio channel on the network to be routed to the input of one or more
devices.
Dante can be easily integrated into an existing network, sharing the system with normal data traffic. Dante
also offers a virtual sound card feature for audio recording, processing or playback using computer-based
programs. This feature is enabled by plugging into the standard Ethernet port on a PC; no external boxes or
sound cards are required.
On Dante-enabled Lake devices no additional hardware is required; a single Ethernet connection can
transmit all audio and control data. Table 8-2 summarizes the number of Dante input and output channels per
Lake product, along with an indication of whether the product provides dual redundant Dante audio network-
ing which as described in section 3.6.2, and the associated Product Operation manuals.
