Lake Controller Operation Manual Rev 1.5.4
Preset Manager

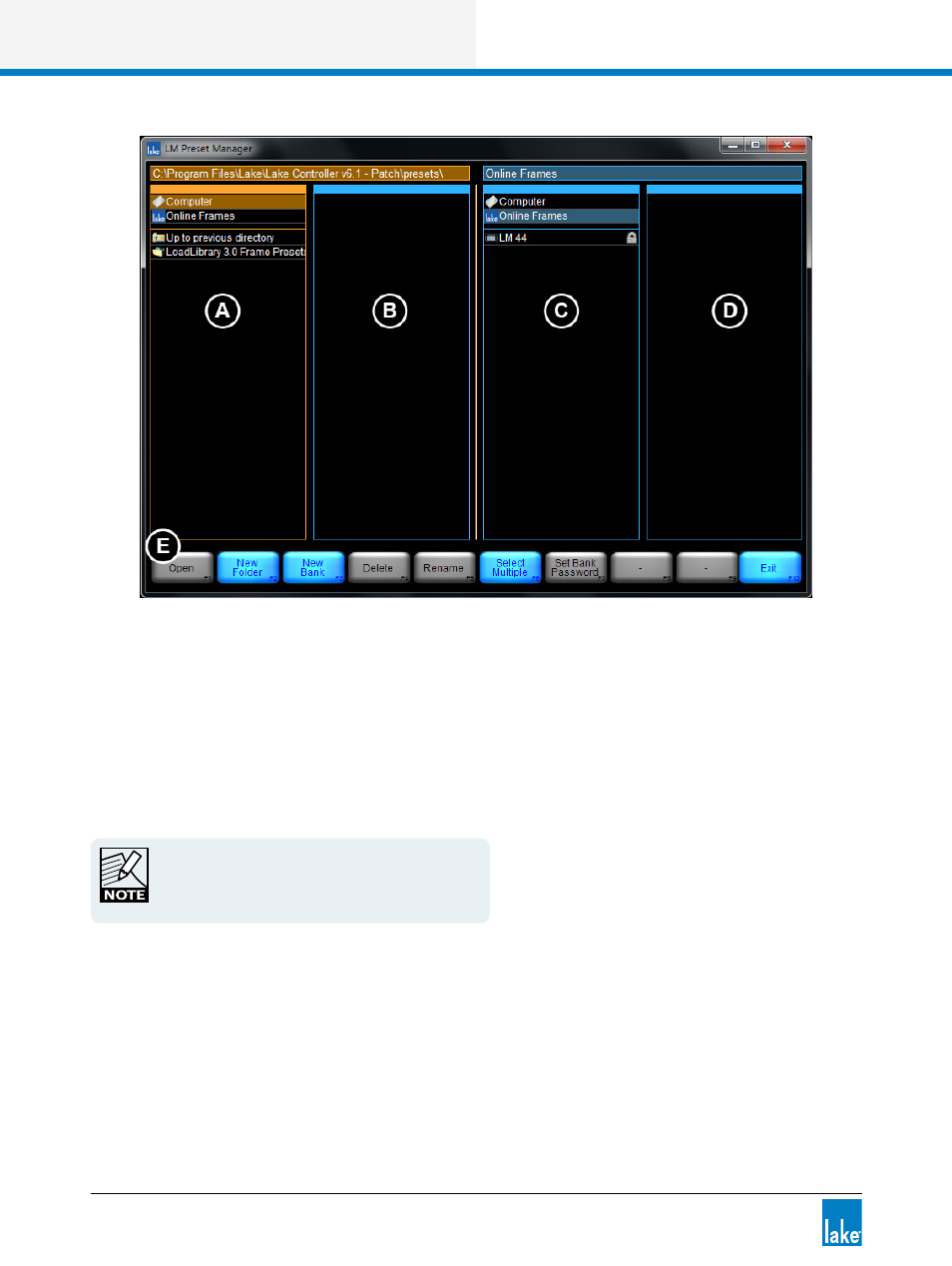

Figure 27-1: Preset Manager Default State
27.2 Screen Layout
27.2.1 Main Area
The main area is divided into four columns labeled ABCD in Figure 22 1. By default, columns A&B display
the contents for the presets folder located on the computer and Columns C&D show the online Frames.
The current directory path is displayed above column A
/ C when COMPUTER is selected. The Preset Manager
stores this location upon exiting the program, and
restores it when restarted.
27.2.2 Button Bar Interface
The button bar, labeled E in Figure 27-1 follows the same logic as the Lake Controller, three colors indicate
the button status.
▸ ORANGE - currently selected function
