Modules Menu Reference
2. Select a Module icon in the work area, and tap I/O CONFIG
The I/O CONFIG button is active only when a Module is selected in the work area.

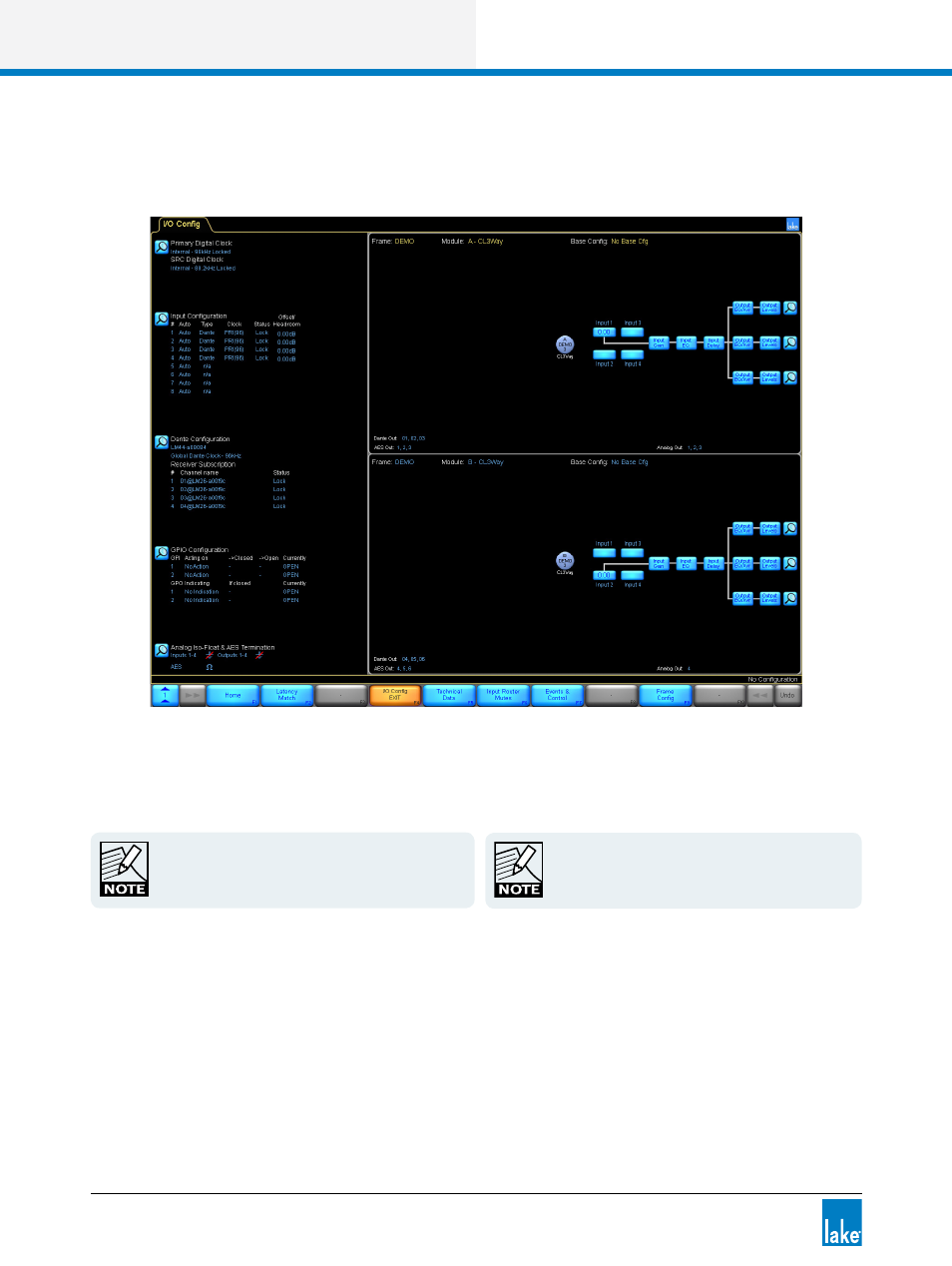

Figure 8-2: LM 26 I/O Configuration Screen
Figure 8-2 shows the I/O CONFIG page for an LM 26. The sections that follow describe each screen/func-
tion in further detail.
I/O Config settings are stored in system configura-
tion files and in Frame/system presets. I/O Config
parameters are transferred during the Frame
Replace function.
I/O Config parameters are not stored, recalled,
copied, or pasted via Module or base configuration
files.
8.2.1 Digital Clock Configuration
LM, PLM+ and D Series devices provide two digital clock domains:
▸
The Primary Digital Clock locks to sample rates of 48, 96, or 192 kHz.
▸
The Sample Rate Converter (SRC) Clock locks to 44.1, 48, 88.2, 96, 176.4, and 192 kHz.
