Lake Controller Operation Manual Rev 1.5.4
Lake Controller Tutorial
59
4.7.2 Single Module File
These files store all information contained in the base configuration file plus user settings for each Module
including the mute states, levels (gain, delay, and limiters), and equalization (filters and EQ overlays).

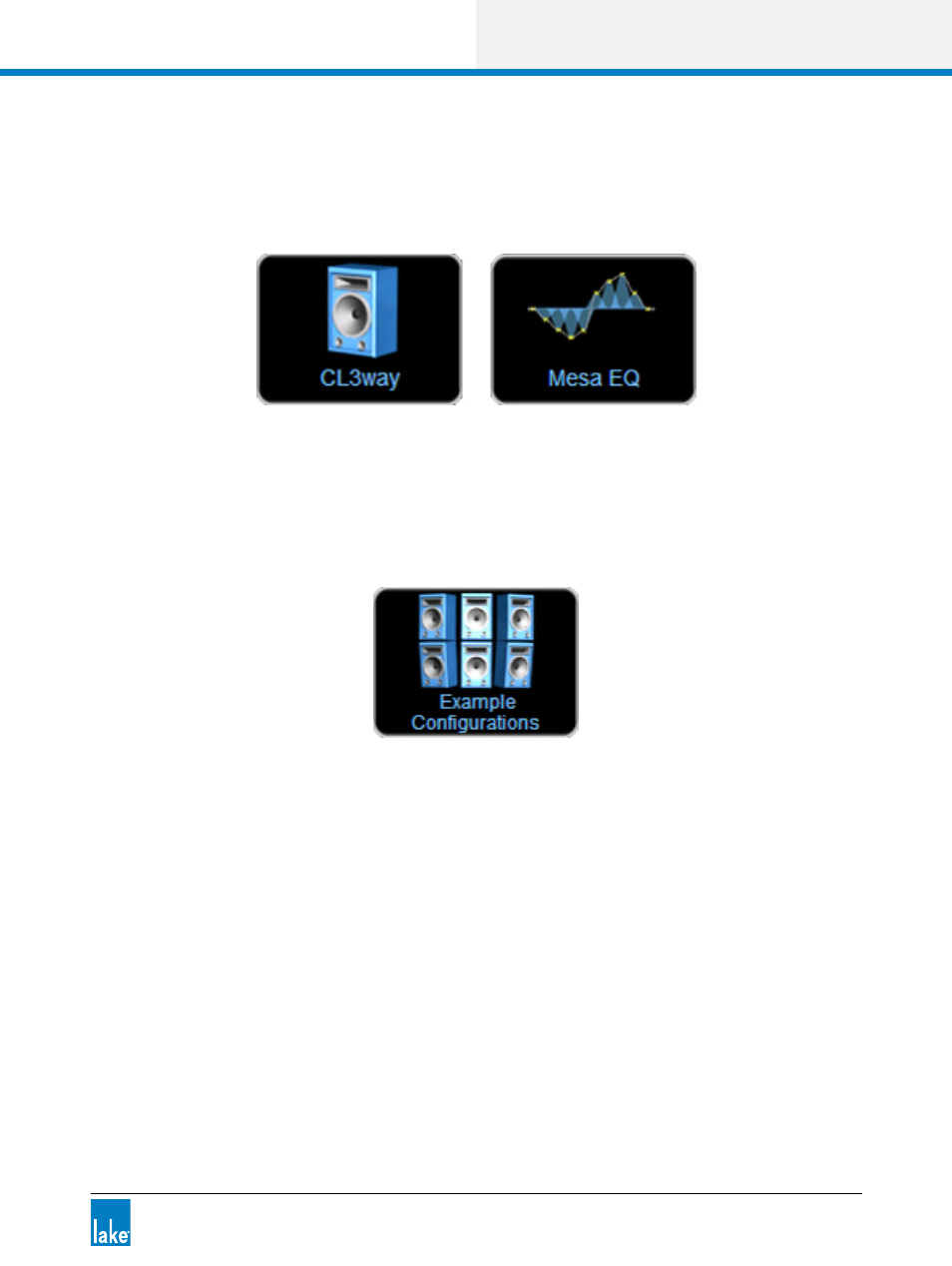

Figure 4-53: Contour [.csm] and Mesa [.msm] Single Module Files
4.7.3 System Configuration File
This file stores/recalls all information contained within all Contour or Mesa single-Module files on a given
network, and additionally includes generic Frame data and all Group assignments and settings.
Figure 4-54: Lake Controller System Configuration File [.csc]
4.7.4 Storing a System Configuration
To store a system configuration file:
1. Tap HOME.
2. Tap SYSTEM STORE/RECALL to display the scroll bar.
3. Tap the STORE SYSTEM button to display the on-screen keyboard.
4. Name the system configuration ‘Example’ and tap OK.
The system configuration is stored and the file is displayed in the scroll bar.
5. Tap the file labelled ‘Example’ to select it.
This activates all recall and store options on the SYSTEM STORE/RECALL button bar.
