166
Lake Controller Operation Manual Rev 1.5.4
Module File Types & Lake LoadLibrary™
9.4.3 Classic 3-Way + 1-Auxiliary Outputs (with Classic 2-Way/2-Aux)
The Classic 3-Way + 1-Auxiliary Output (CL3w+1a) Module allows the remaining two output channels to be
configured as either Classic 2-Way or 2-Auxiliary Outputs.
Separate input EQ (PEQ/GEQ) is available for the CL3w+1a and the 2-Way/2-Aux Modules.
As with the Classic 2-Way + 1-Auxiliary Outputs Modules, the Auxiliary channel on the CL3w+1a can be fed
post-input EQ, post-input EQ and delay, or from its own independent Input Mixer.

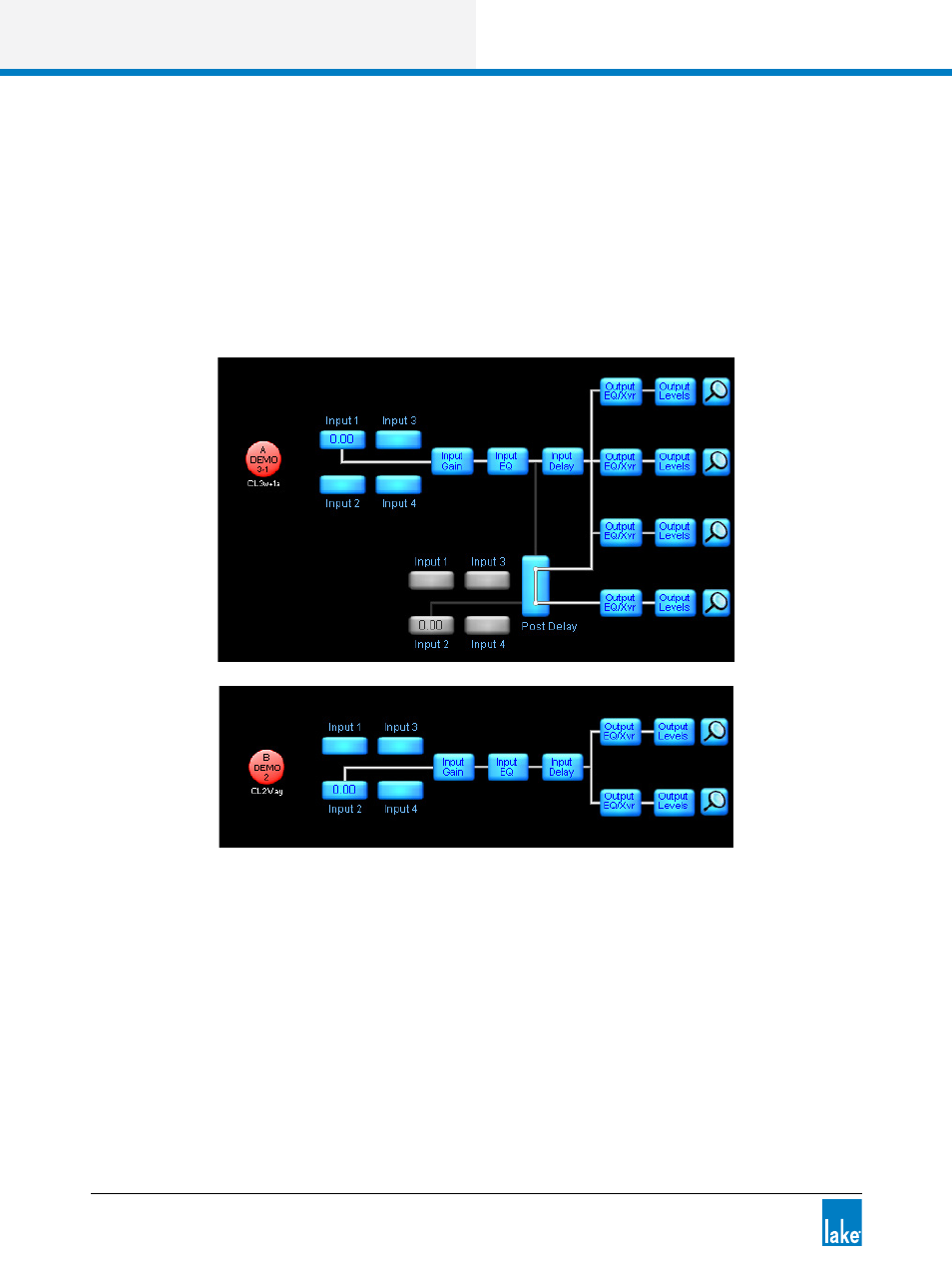

Figure 9-4: Classic 3-Way+1-Aux with Classic 2-Way
