Lake Controller Operation Manual Rev 1.5.4
Lake Controller Tutorial
45

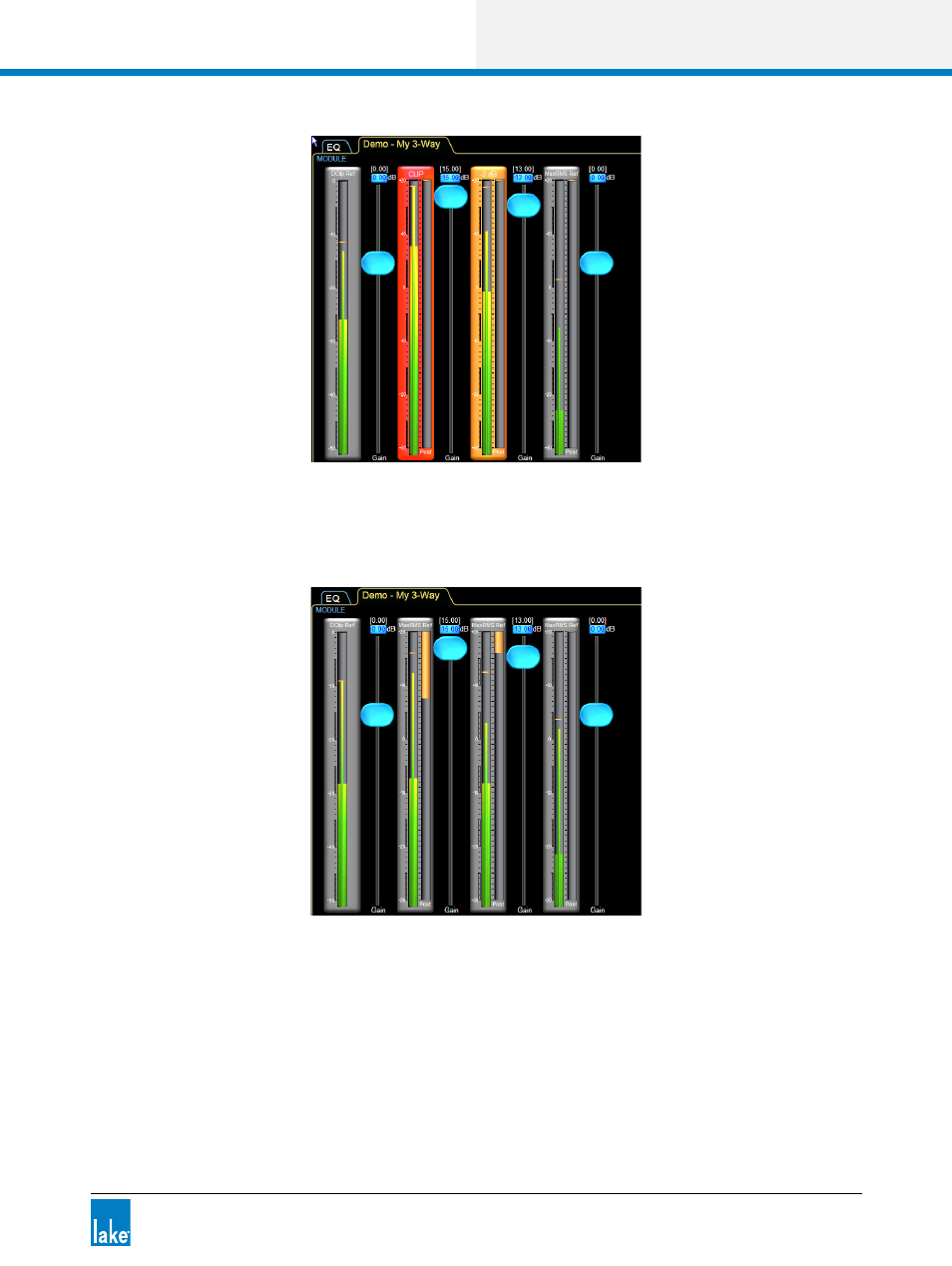

Figure 4-29: Clipping and -2 dB warning indicators
As limiters are engaged, the amount of gain reduction is shown with a meter operating in the downward
direction.
Figure 4-30: Orange downward meters indicate channel limiting
The limiter meter displays the total amount of limiting resulting from both peak and RMS limiter functions of
the LimiterMax
™ loudspeaker protection system.
