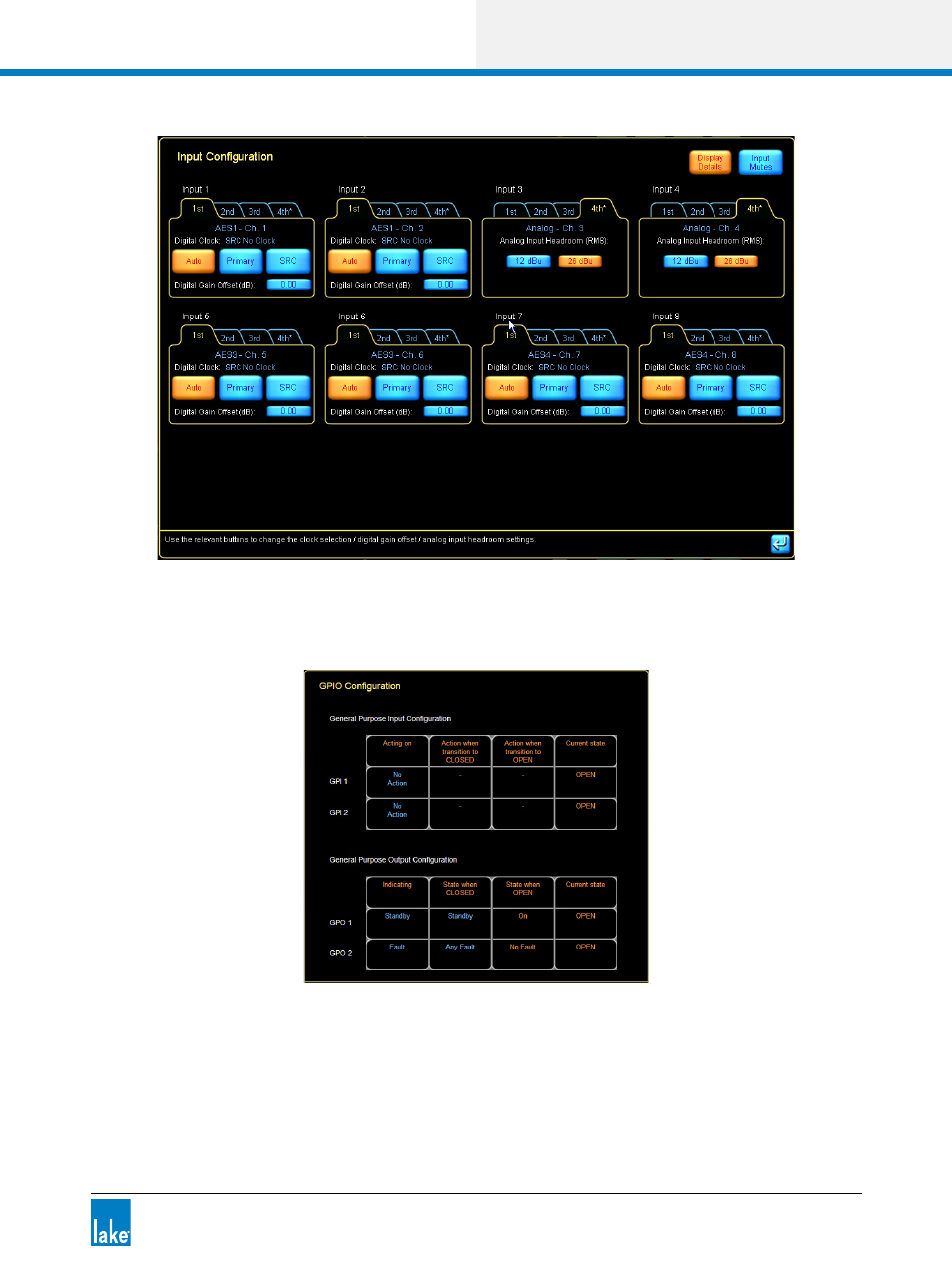

Figure 4-24: LM 44 Input Configuration - Details View
The next summary item on the left side of the I/O CONFIG screen (LM Series devices only) is
GPIO Configuration. Tapping this icon, or the summary text, will display the screen shown in Figure 4-25.
Figure 4-25: GPIO Configuration (LM Series Devices Only)
GPIO Configuration is used to set the actions for this contact-closure style external control interface. For
further details, please refer to the LM Series Operation Manual and to section 8.2.3 in this document.
