244
Lake Controller Operation Manual Rev 1.5.4
Lake-enabled Amplifier Reference
20.5 Navigation
The EVENTS & CONTROL functionality, when used with Lake-enabled amplifiers, provides additional
module-level information including STATUS, HISTORY and LOADSMART information. MODULE VIEW and
GLOBAL VIEW. Each has further tabbed views.

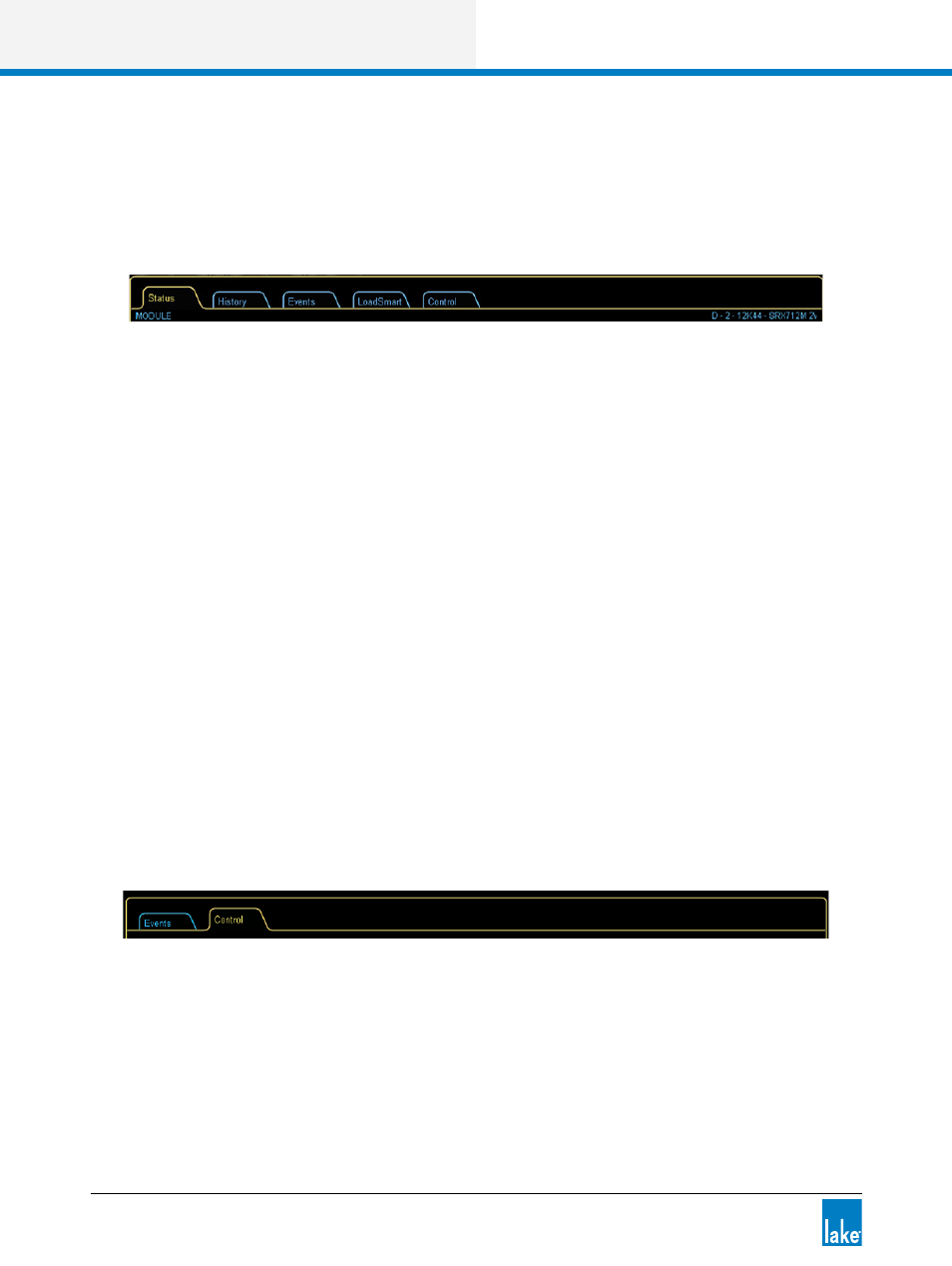

Figure 20-3: Events & Control Module View Tabs
20.5.1 Accessing Module View
Module View can be accessed by three different methods.
1. Tap HOME [F1] then tap a Module icon. Ensure LEVELS is selected, then tap EVENTS & CONTROL
(located below the first output fader).
2. Tap HOME [F1] then tap MODULES [F3]. Select a Module, tap I/O CONFIG [F4] then tap
EVENTS & CONTROL [F7].
3. Tap HOME [F1] then tap the ALL page tab. Tap a Module icon to directly access EVENTS & CONTROL.
20.5.2 Accessing Global View
To access Global View:
1. Navigate to the ALL page
2. Tap GLOBAL INFO [F9]
3. Tap EVENTS & CONTROL [F8]
Figure 20-4: Events & Control Global View Tabs
20.6 Status Tab
The STATUS display is selected by tapping the STATUS tab in MODULE VIEW.
Channel strips display data relating to each power output section assigned to the selected Module.
