Lake Controller Operation Manual Rev 1.5.4
MY8-LAKE Reference and Operation
281

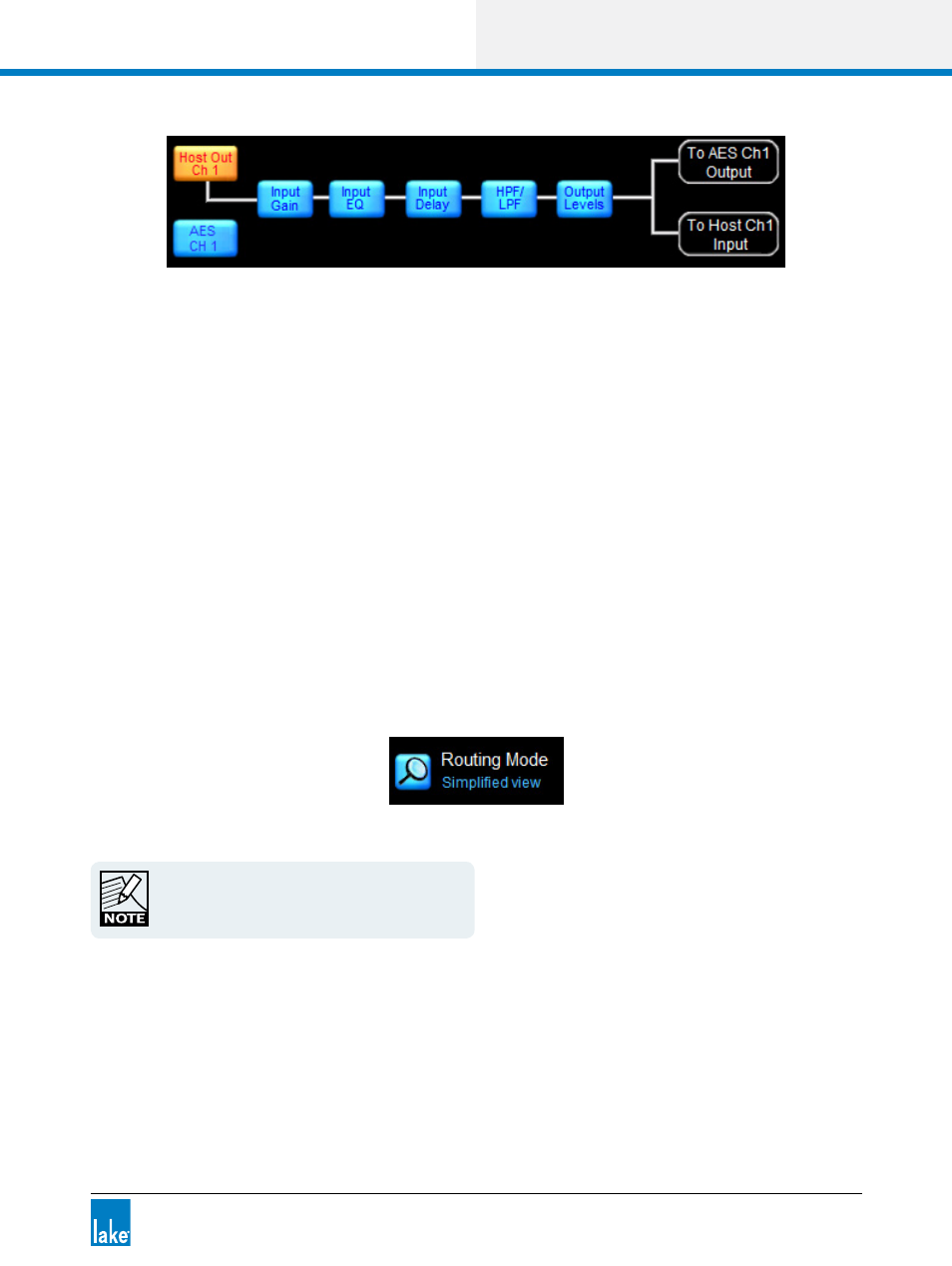

Figure 22-6: Signal Path for Mesa Module A in Simplified View
22.4.2 Classic View (All devices and configurations)
The standard fully functional Lake Controller I/O configuration view (Classic View) is also available for
MY8-LAKE Mesa configurations. Classic View is the only option available when the MY8-LAKE is config-
ured in Contour configuration or in the Contour/Mesa hybrid configuration.
This view provides all standard input and output configuration options that are applicable for the
MY8-LAKE device as per normal Lake Controller operation; please refer to section 8.2 of this manual for
further information.
22.4.3 Changing between Simplified View and Classic View
To change between Simplified View and Classic View:
1. Tap Routing Mode at the bottom left of the screen
2. Tap either the Simplified View or the Classic View button depending on the view required
Figure 22-7: MY8-LAKE Routing Mode Summary
When switching from Classic View to Simplified
View, a router reset will be implemented to return
the routing to the default Mesa Configuration
routing.
