Lake-enabled Amplifier Reference
20. Lake-enabled Amplifier Reference
This chapter describes information specific using the Lake Controller with Lake-enable amplfiers including
PLM, PLM+ and D Series devices. For further details on each product, please refer to the relevant Operation
Manual.
20.1 Signal Flow

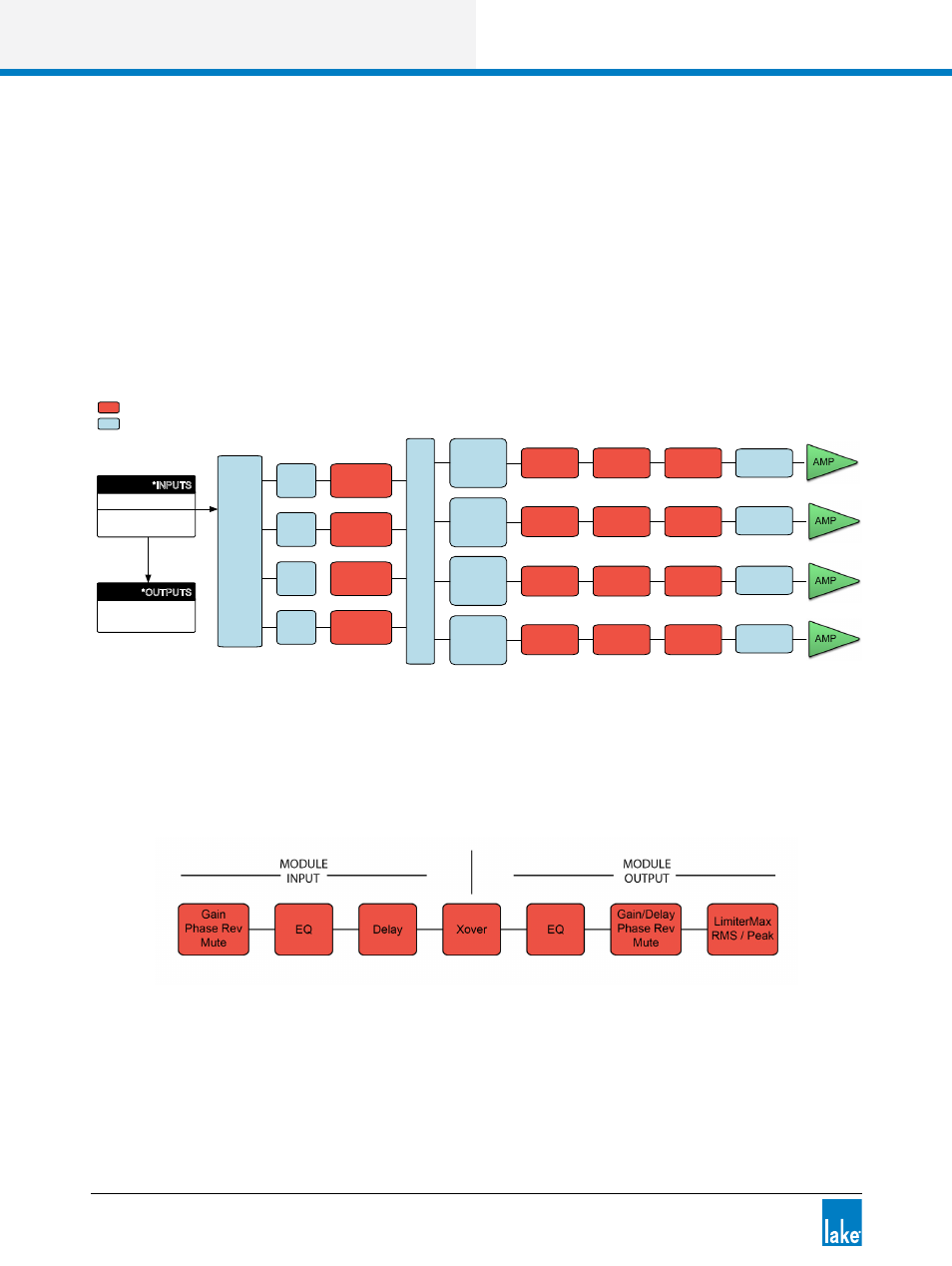

The diagrams below depict the audio signal flow for Lake-enabled amplifiers.
Input
Mixer A
Input
Mixer B
Input
Mixer C*
Input
Mixer D
Input
Routers
1-4*
WITH
INPUT
MUTES
Output Routing
AES 1-4
Analog 1-4
*INPUTS
Dante 1-8
(no mutes)
*OUTPUTS
Dante Receivers 1-8
AES/Analog
pass thru
to Dante
* PLM Series is limited to 2 Inputs, 2 Outputs and 2 Contour Modules
^ Not applicable for PLM Series
Lake Contour
Module A
Lake Contour
Module B
Lake Contour
Module C*
Lake Contour
Module D*
Module Data stored in Module Files (Speaker Presets)
Frame Data stored in System Files and Frame Presets
Attenuator
Mute
Phase Rev
Custom RPM^
Attenuator
Mute
Phase Rev
Custom RPM^
Attenuator
Mute
Phase Rev
Custom RPM^
Attenuator
Mute
Phase Rev
Custom RPM^
LoadPilot^
LoadPilot^
LoadPilot^
LoadPilot^
ISVPL
Auto RPM^
ISVPL
Auto RPM^
ISVPL
Auto RPM^
ISVPL
Auto RPM^
Amp Gain
Amp Gain
Amp Gain
Amp Gain
LoadSmart
LoadSmart
LoadSmart
LoadSmart
Figure 20-1: Amplifier Signal Flow
The signal flow within the Lake Contour Module is shown below.
Figure 20-2: Lake Contour Module Signal Flow
