170
Lake Controller Operation Manual Rev 1.5.4
Module File Types & Lake LoadLibrary™

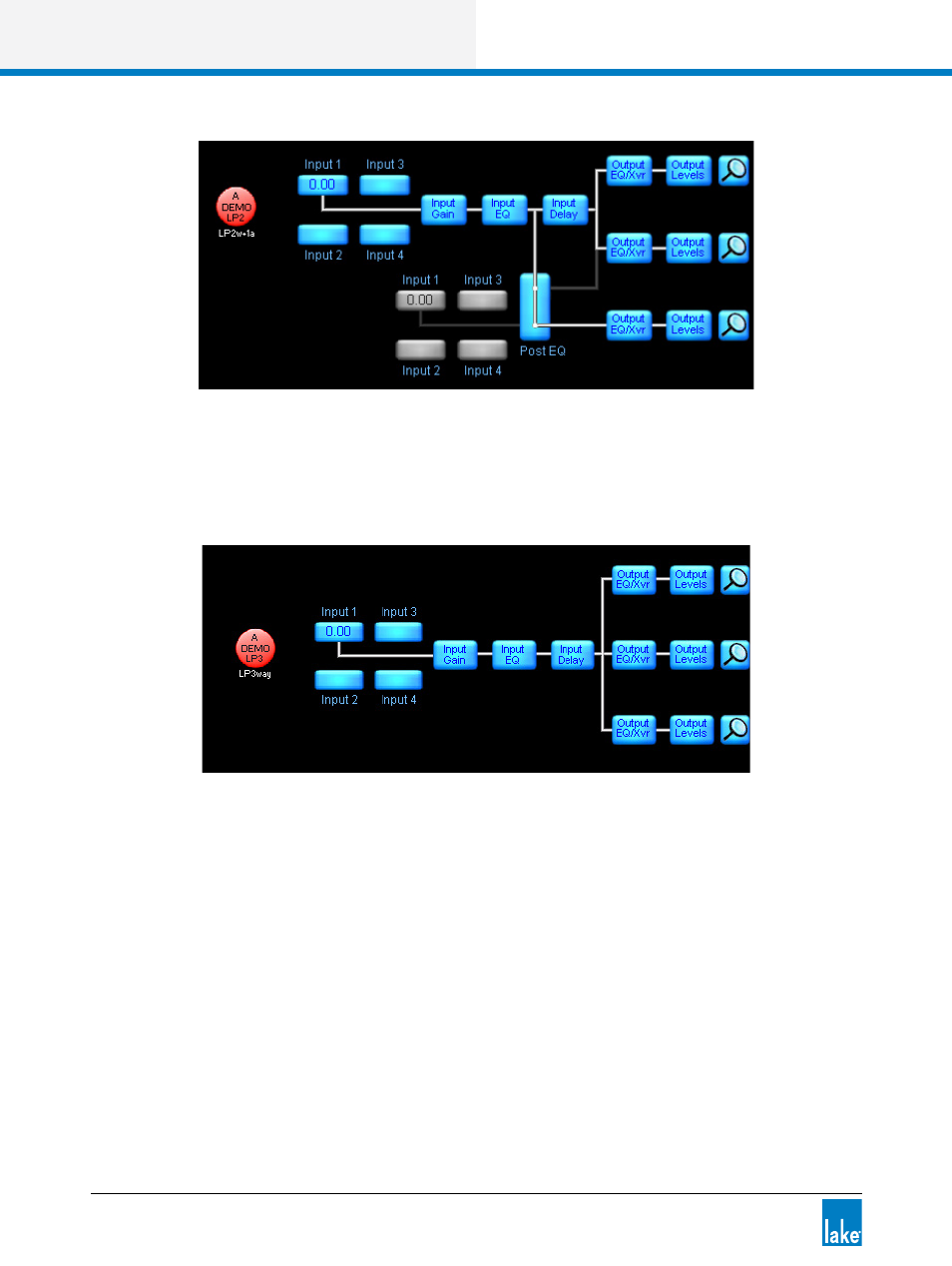

Figure 9-8: Linear Phase 2-Way + 1-Auxiliary Outputs
9.5.2 Linear Phase 3-Way
The Linear Phase 3-Way (LP3way) has a similar signal path to the Classic 3-Way (CL3way).
Figure 9-9: Linear Phase 3-Way
9.5.3 Linear Phase 2-/3-Way EQ/MaxPeak combinations
The LP2 and LP3way Modules use a significant amount of processing power to create steep crossovers
with flat phase response. For this reason, the full amount of output-specific EQ filters can only be used if
the MaxPeak is disabled on the Module, as the MaxPeak Limiter also requires a large amount of processing.
The MaxPeak Limiter process is disabled when the total MaxPeak level (including Group and factory set-
tings) is 25 dBu or greater. The following crossover EQ filters for the LP2 and LP3way are available:
▸ MaxPeak Activated: 10 EQ Filters + High-pass Filter
▸ MaxPeak Deactivated: 15 EQ Filters + High-pass Filter
