Lake Controller Operation Manual Rev 1.5.4
EQ/Levels Menu Reference
103
:

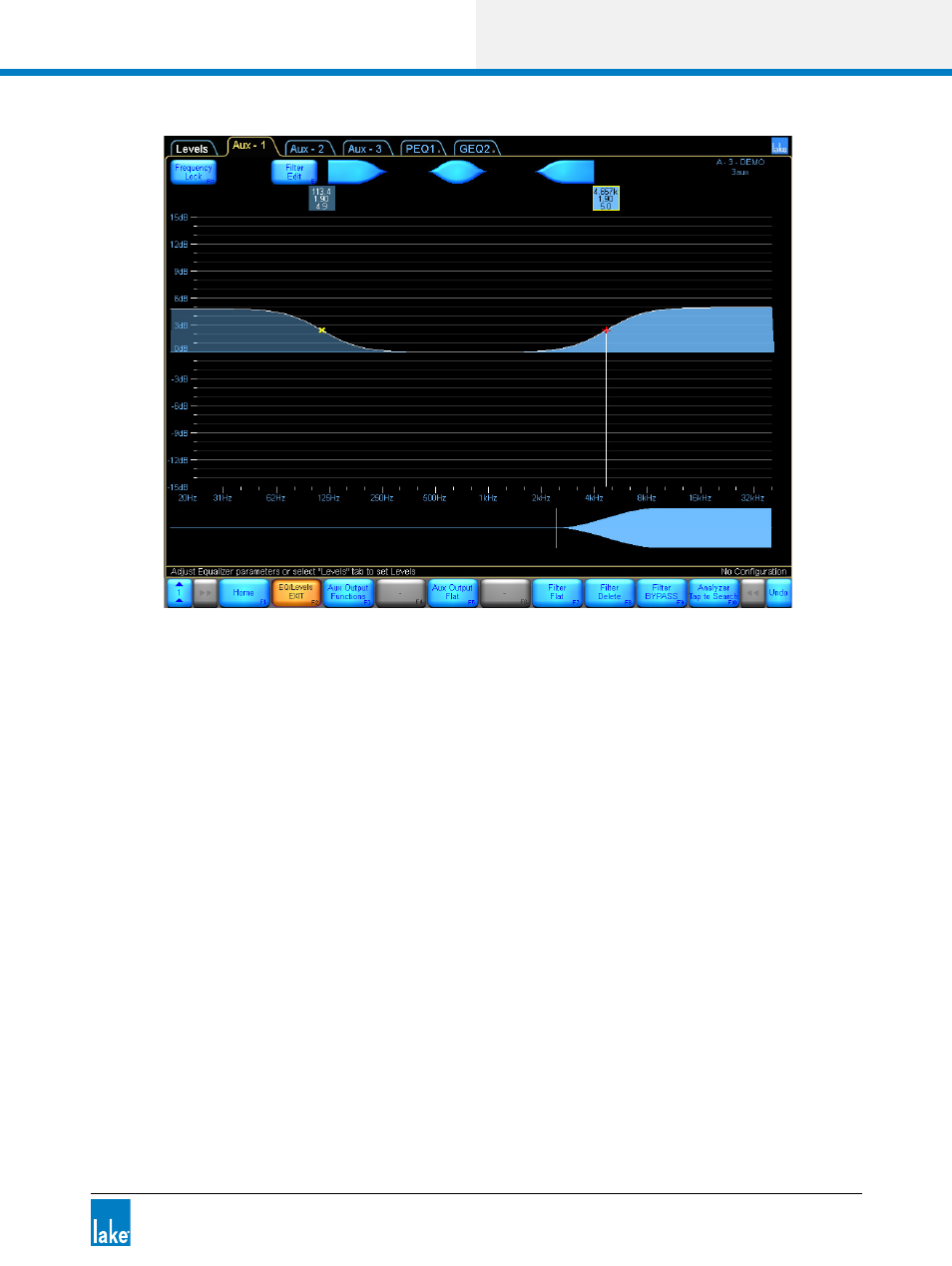

Figure 6-20: Adding a High Shelf and Low Shelf Filter to Aux-1
EQ added to an Aux tab affects only the associated output. Module and Group PEQ and GEQ still affect all
outputs of the Module.
6.5.4 High-pass and Low-pass Filters
The high-pass and low-pass filter controls are located under the AUX OUTPUT FUNCTIONS submenu.
1. With the AUX-1 tab selected, tap AUX OUTPUT FUNCTIONS
2. Tap HPF ENABLE then tap LPF ENABLE
