Designer Mode Menu Reference
19.3.1.3 All Pass Filters
In Designer Mode, the All Pass filter is available on the XOVER/AUX screens. The All Pass filter icon is
identified at [A] in Figure 19-7:

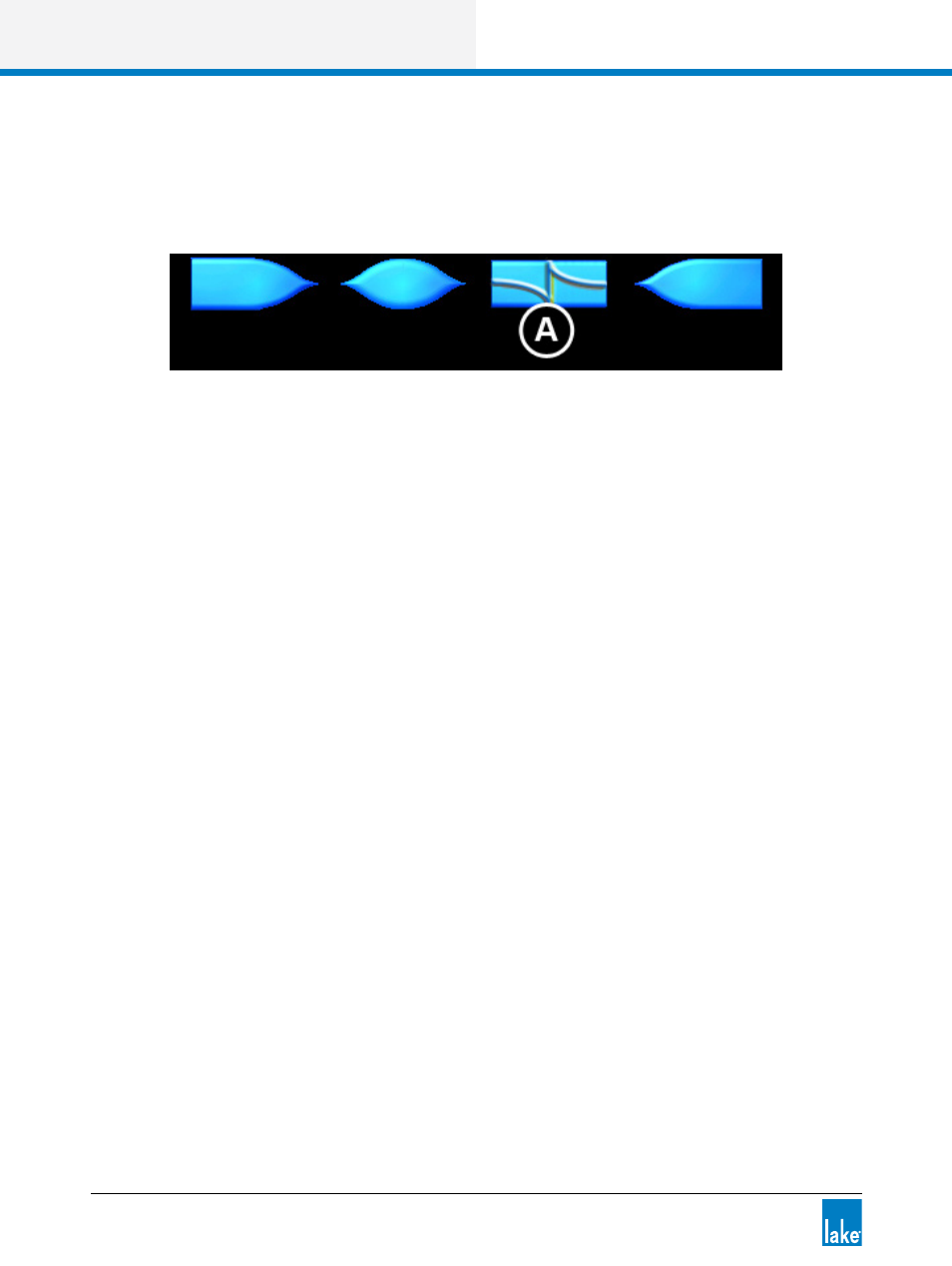

Figure 19-7: All Pass Filter
The ALL PASS filter allows first- and second-order (default) phase adjustment with variable bandwidth and
frequency.
To add an ALL PASS filter to an output, perform the following steps:
1. Select an output on the Xover page, or select the required Aux Output screen.
2. Tap the ALL PASS filter icon [A].
3. Tap on the EQ scale to add the filter.
4. Adjust the order, frequency, and bandwidth as required.
19.3.2 EQ Functions
19.3.2.1 Set Hide/View Only Status for an Individual EQ Overlay
1. Navigate to the Module or Group overlay in EQ/LEVELS.
2. Tap EQ OVERLAY FUNCTIONS, then EQ OVERLAY PROPERTIES.
3. Tap EQ OVERLAY VIEW ONLY or EQ OVERLAY HIDE. The selected status is illuminated orange.
19.3.2.2 Set Hide/View Only Status for All EQ Overlays
This affects all EQ overlays in the current system configuration.
1. From HOME, tap USER PREFERENCES.
2. Tap GLOBAL ACCESS.
3. Tap EQ HIDE/EQ VIEW ONLY.
