Lake Controller Operation Manual Rev 1.5.4
Modules Menu Reference
119
The PLM Series provides a single digital clock, equivalent to the SRC Clock on PLM+, LM and D Series
devices. The MY8-LAKE provides a Primary clock fixed to multiples of 48 kHz and an SRC clock fixed to
multiples of 44.1 kHz. The LM Series digital clock screens will be used in the examples below.
To access the Digital Clock Configuration window, tap the zoom button located at the top left of the
I/O CONFIG page.

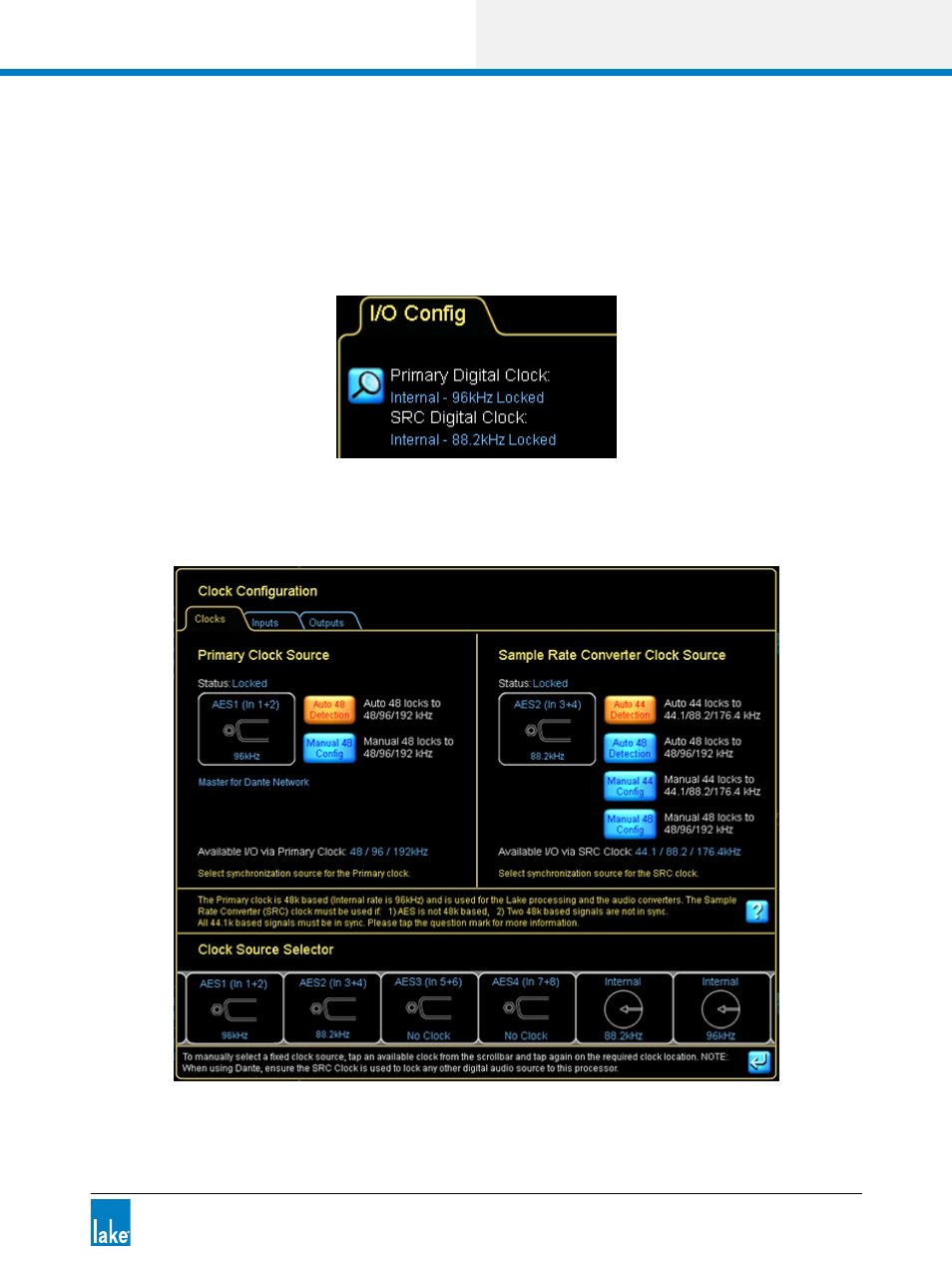

Figure 8-3: LM 44 Digital Clock Summary - I/O Configuration
After tapping the zoom button shown in Figure 8-3 the following screen is displayed:
Figure 8-4: LM 44 Digital Clock Configuration Screen
