36
Lake Controller Operation Manual Rev 1.5.4
Lake Controller Tutorial

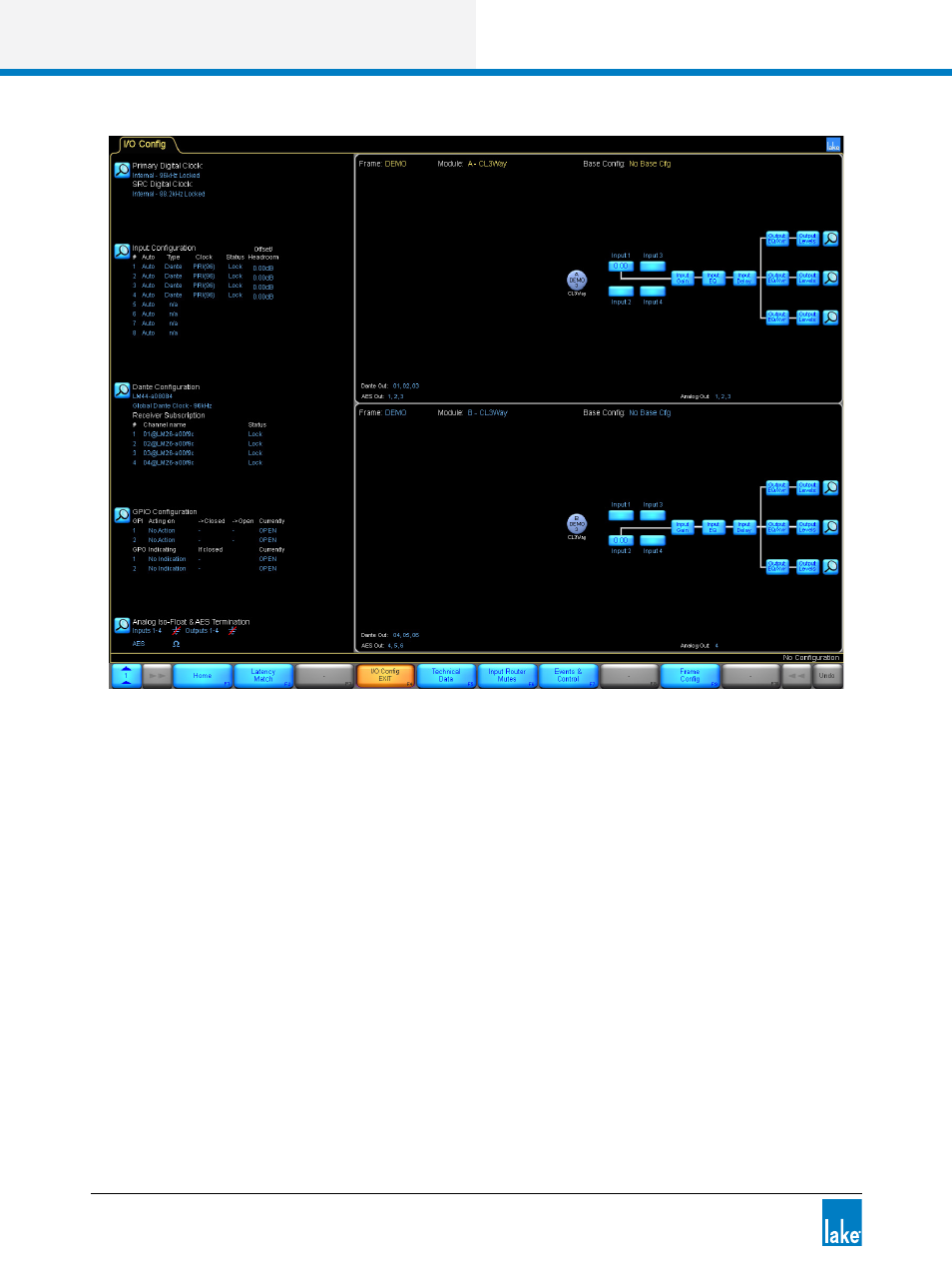

Figure 4-19: LM 26 I/O Configuration Screen
The right side of the I/O CONFIG page can be dragged to scroll up and down for viewing of all Module block
diagrams where all diagrams cannot fit on the screen.
2. Tap any black space within the block diagram area and drag up or down to scroll. The I/O CONFIG page
is interactive; each blue processing block can be selected to directly access the relevant screen in the
software. Each block diagram has a front-end input mixer.
3. Tap any one of the four inputs of the ‘My 3-Way’ Module to access the input mixer.
