Lake Controller Operation Manual Rev 1.5.4
Module File Types & Lake LoadLibrary™
167
9.4.4 Classic 4-Way/4-Aux (with Classic 2-Way/2-Aux)
The Classic 4-Way (CL4way) or 4-Auxiliary Outputs (4aux) Modules allow the remaining two output chan-
nels to be configured as either Classic 2-Way or 2-Auxiliary Outputs.
Separate input EQ (PEQ/GEQ) is available for the Classic 4-Way/4-Aux and the 2-Way/2-Aux Modules

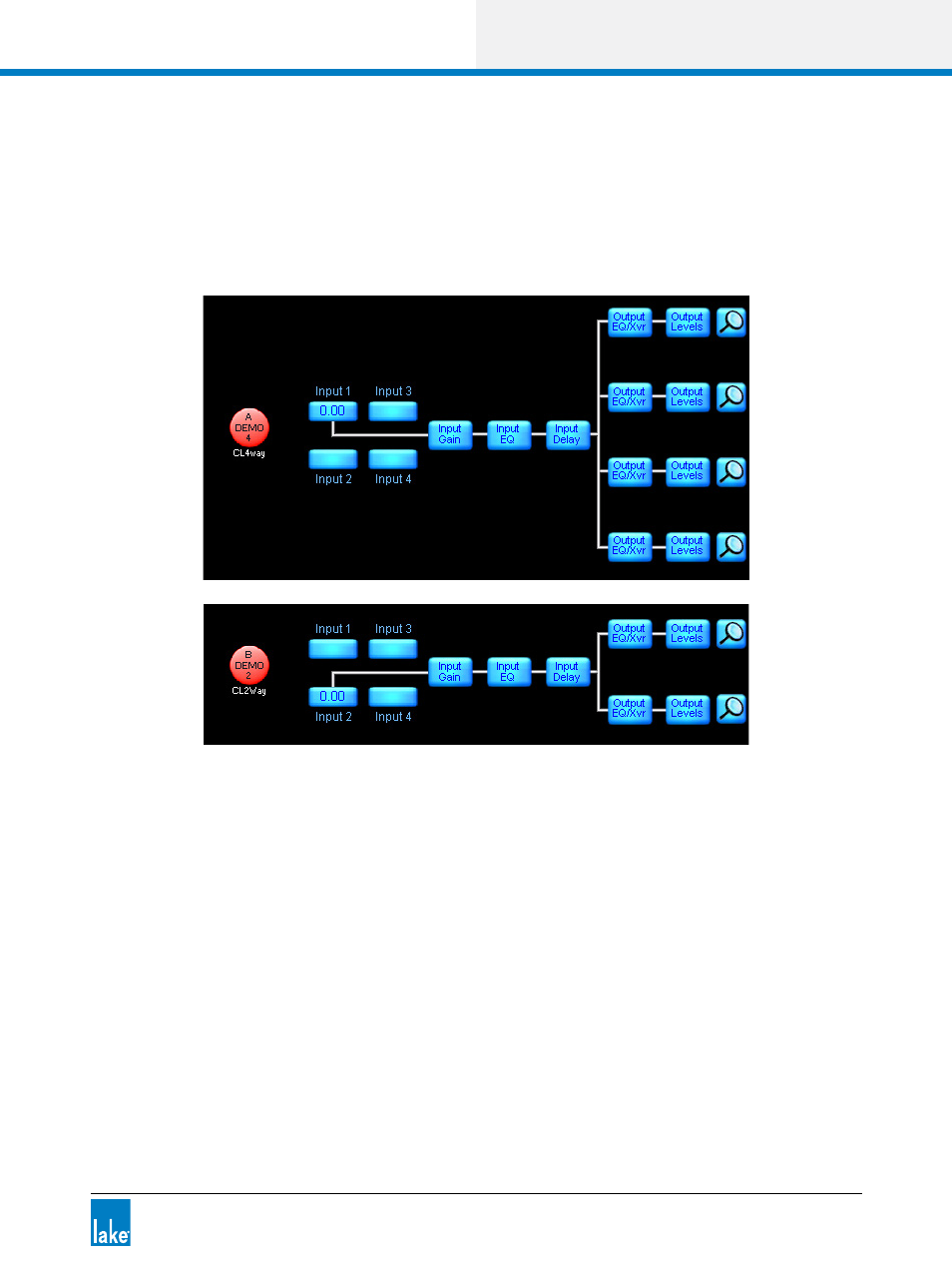

Figure 9-5: Classic 4-Way with Classic 2-Way
