Lake Controller Operation Manual Rev 1.5.4
Lake-enabled Amplifier Reference

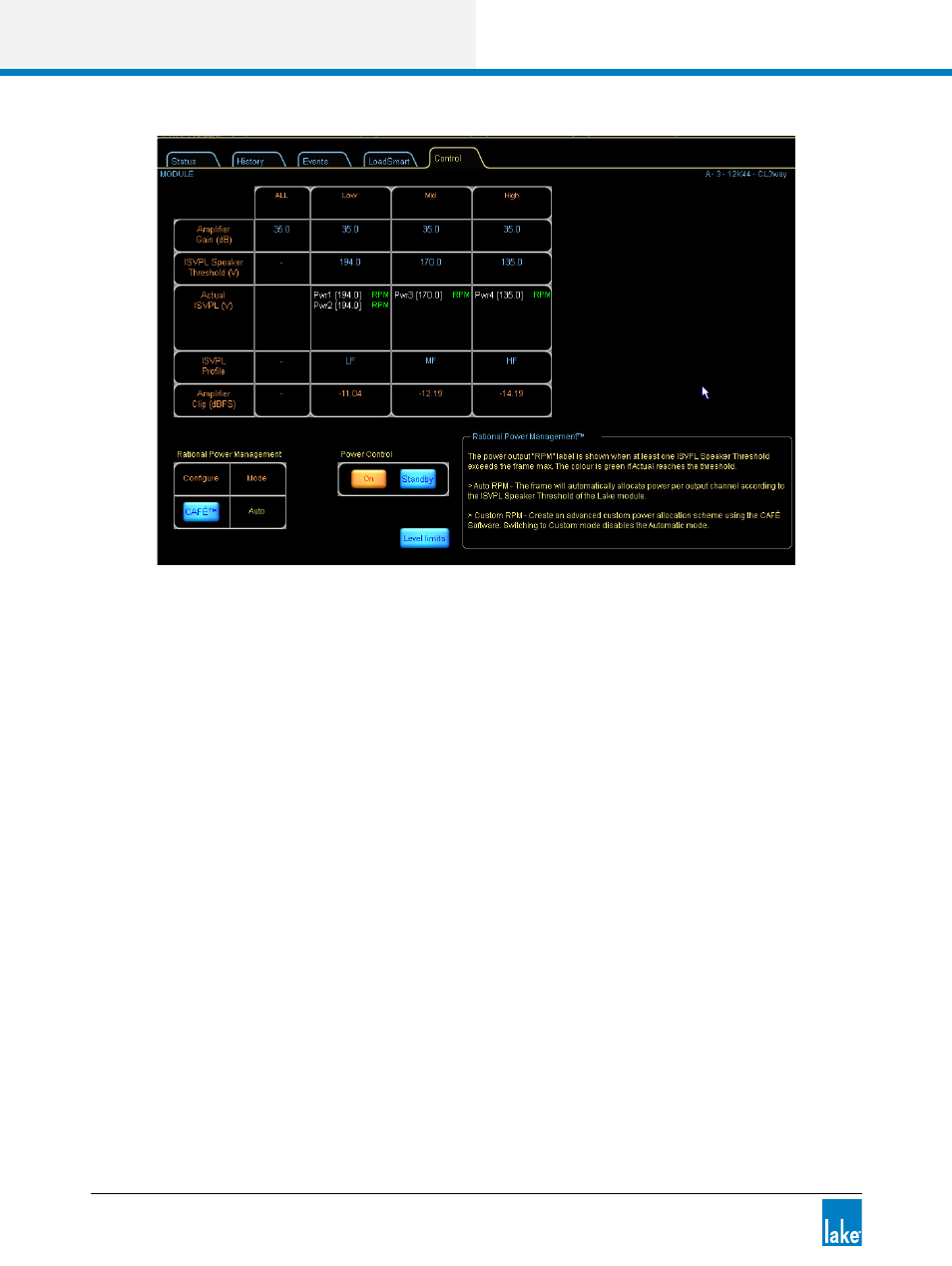

Figure 20-10: Control Tab with Parameters and Power Control
20.10.2 Amplifier Gain
The amplifier gain parameter on the Control tab relates to the power output stage of the amplifier.
This gain is set per Module output channel, and it part of Speaker Preset files created for Lake-enabled
amplifiers. Any power output channel routed to a Module output will inherit the Amplifier Gain value speci-
fied for that Module output.
To change the amplifier gain for a channel, tap on the associated cell and enter a value via the pop-up
numeric keypad. Entering a value in the ALL cell applies that value to all power output channels.
Amplifier gain may also be set via the front panel via MENU > MODULE > AMP GAIN.
20.10.3 Inter-Sample Voltage Peak Limiter (ISVPL) Threshold
The ISVPL threshold information is displayed in the second row of the Control tab table.
Blue text indicates the desired value; white text within block parenthesis indicates the actual value for each
power output. The actual value per power output channel can be affected by:
▸ The ISVPL Threshold
▸ The maximum voltage a particular Lake-enable amplfier can produce
