To change the currently selected breaker type, tap the required breaker on the scrolling bar at the bottom of
the screen then tap again in the Breaker Type box at the top of the screen.
8.2.5 Dante Configuration (not applicable for MY8-LAKE)
The Dante Configuration summary on the I/O CONFIG screen reports either the Global Dante Clock Sample
Rate, or advises that Dante is disabled; it additionally lists the assigned receiver subscriptions and associated
sample rate and status.
Further information on Dante settings can be accessed by tapping the zoom button or the associated text. A
screen similar to that shown in Figure 8-12 will be displayed.
To configure the device for Dante dual redundant operation, navigate to the TECHNICAL DATA screen via
the I/O CONFIG menu and enable the Dual Redundancy option. This change will require a power cycle of
the device; please refer to section 8.2.10.4.
8.2.5.1 Device Tab
Tapping the zoom button labeled DANTE CONFIGURATION displays the Dante Configuration > Device tab,
with Dante disabled by default:

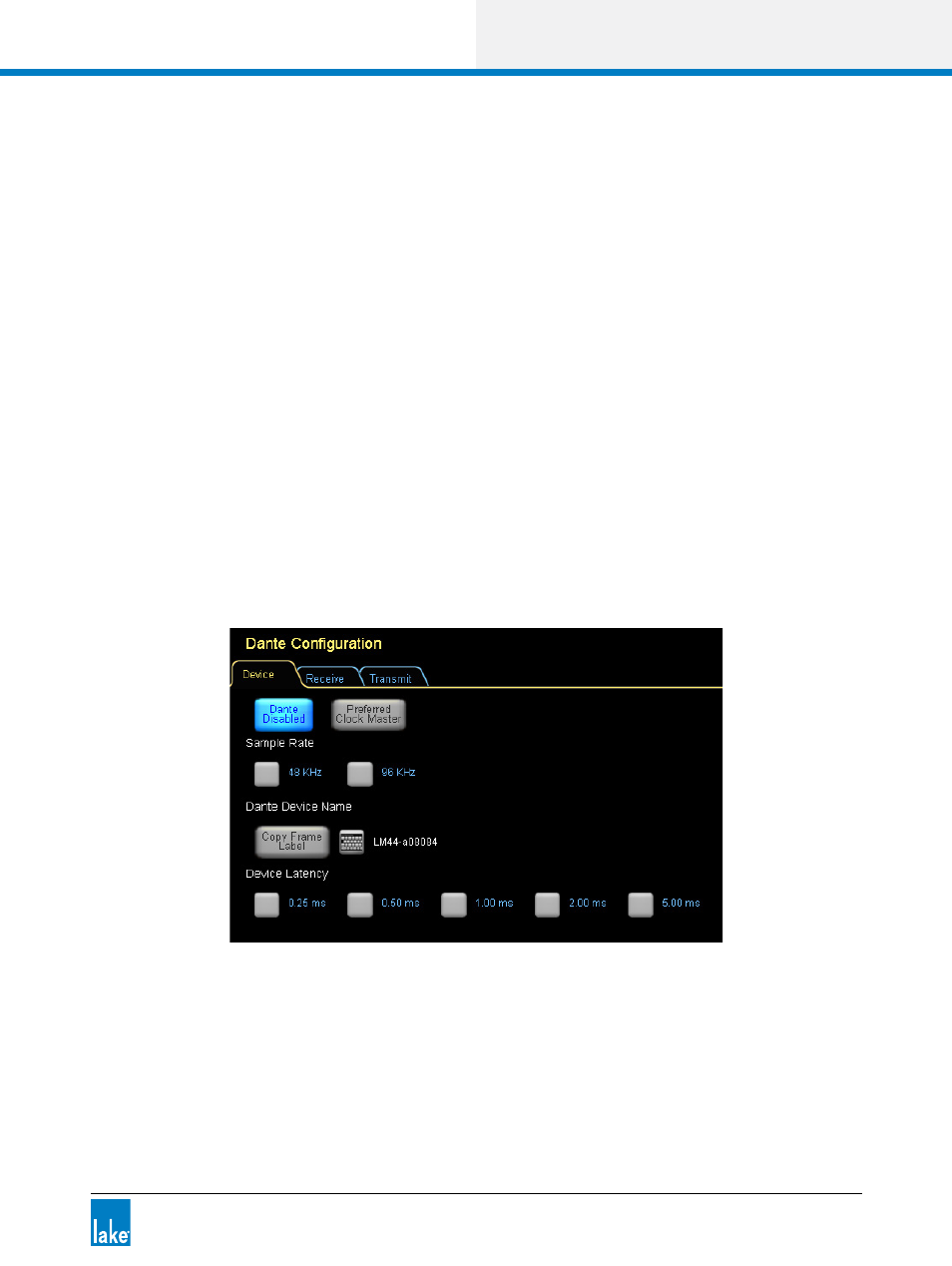

Figure 8-12: Dante is Disabled by Default
To enable Dante, tap the button labelled Dante Disabled; the button turns orange and now reads Dante
Enabled and other functions become available.
