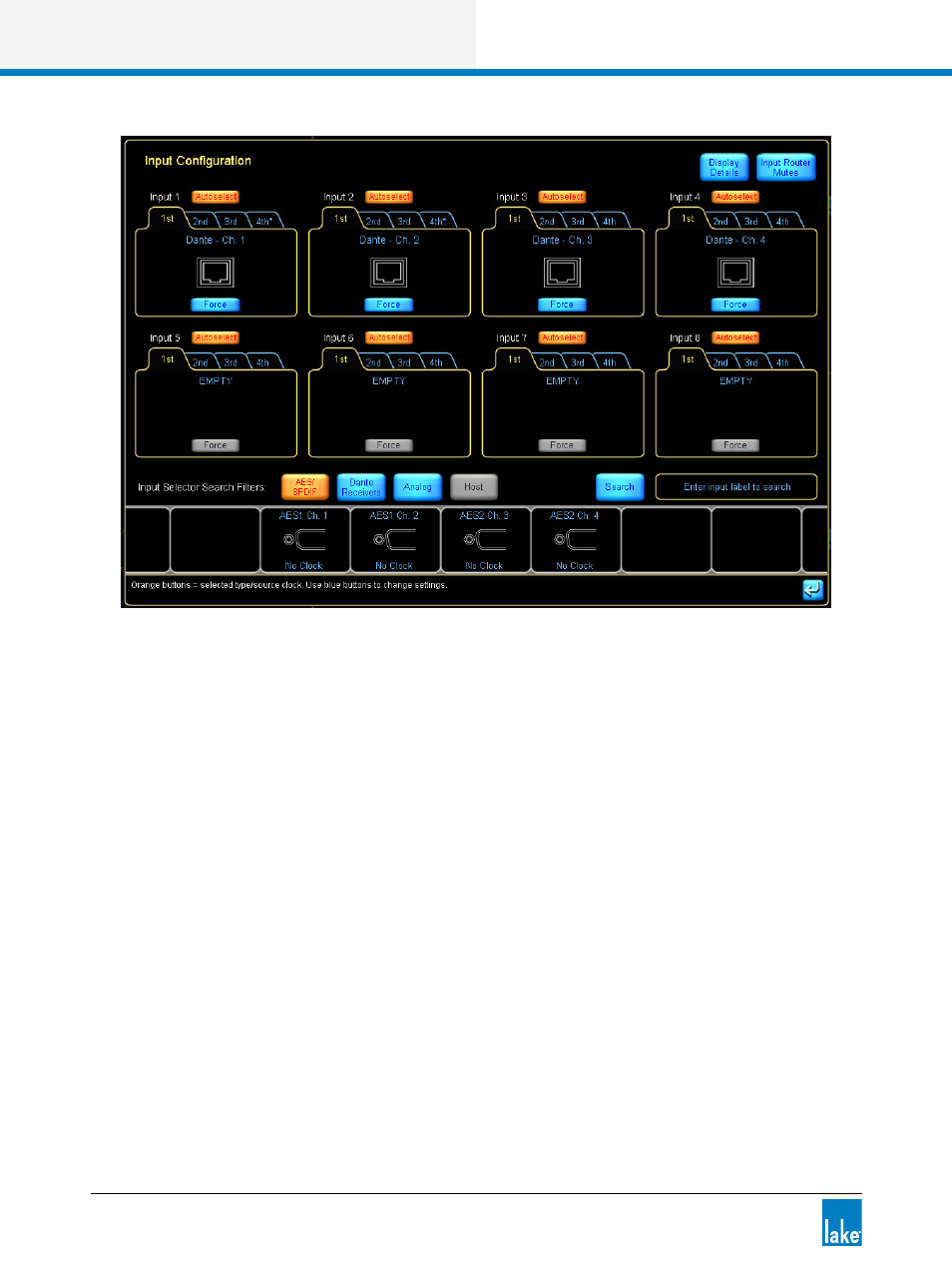

Figure 4-23: LM 44 Input Configuration Screen
From this interface, you can allocate which input is used for each input channel of the Input Mixer, and in
which order up to four inputs should auto-select (fail over) for each input channel.
The input AUTOSELECT feature allows you to set up a redundant system. The device will attempt to use
the first signal; if the first signal is unavailable it will try the second, third, and fourth signals.
Tapping DISPLAY DETAILS allows control of digital clock selection/digital gain offsets and analog input
headroom as shown in Figure 4-24.
DIGITAL GAIN OFFSET allows fine-tuning of gain between different digital and analog signals to allow for a
seamless transition between the signal sources.
