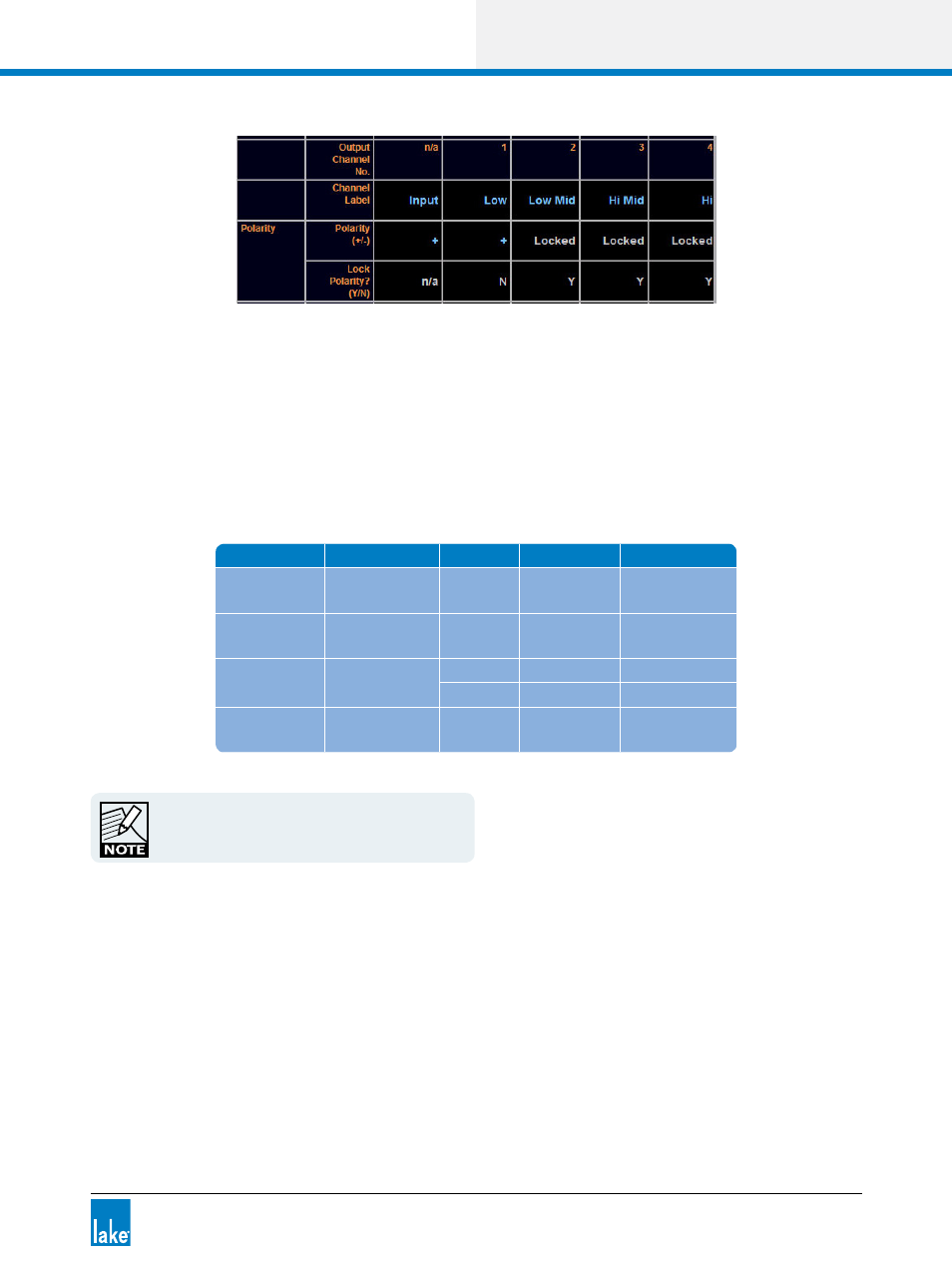

Figure 19-17: Polarity Locked
Designer worksheets are not available in User Mode, and in the example shown in Figure 19-17, only the
input and low output polarity buttons will be visible.
19.4.6 PEQ - Design
The PEQ-DESIGN worksheet displays the details for each PEQ overlay for the selected Lake device. Table
19-6 shows the available PEQ type abbreviations, descriptions, and default values.
Table 19-6: PEQ Types
EQ TYPE DESCRIPTION GAIN FREQUENCY BANDWIDTH
LS Low Shelf 0 dB 125 Hz 1.9
BP
Band-pass
(Parametric)
0 dB 500 Hz 0.33
ME Mesa Filter
0 dB 830 Hz 0.33
0 dB 1.2 kHz 0.33
HS High Shelf 0 dB 8 kHz 1.9
The extra fields for the Mesa filter can only be
edited when a Mesa filter type is entered.
19.4.7 GEQ - Design
The GEQ-DESIGN worksheet displays the details for each GEQ overlay for the selected Lake device, includ-
ing the gain value of each GEQ filter and the bypassed/inserted status of each filter and each overlay.
19.4.8 Locked Modules/Hidden/View Only Data
If data on a Module has been hidden or set to view only, and the Module has been locked, the associ-
ated data will either be view only on the worksheets (View Only data) or will be replaced with the word
LOCKED (Hidden data).
