Lake Controller Operation Manual Rev 1.5.4
Lake Controller Tutorial
▸

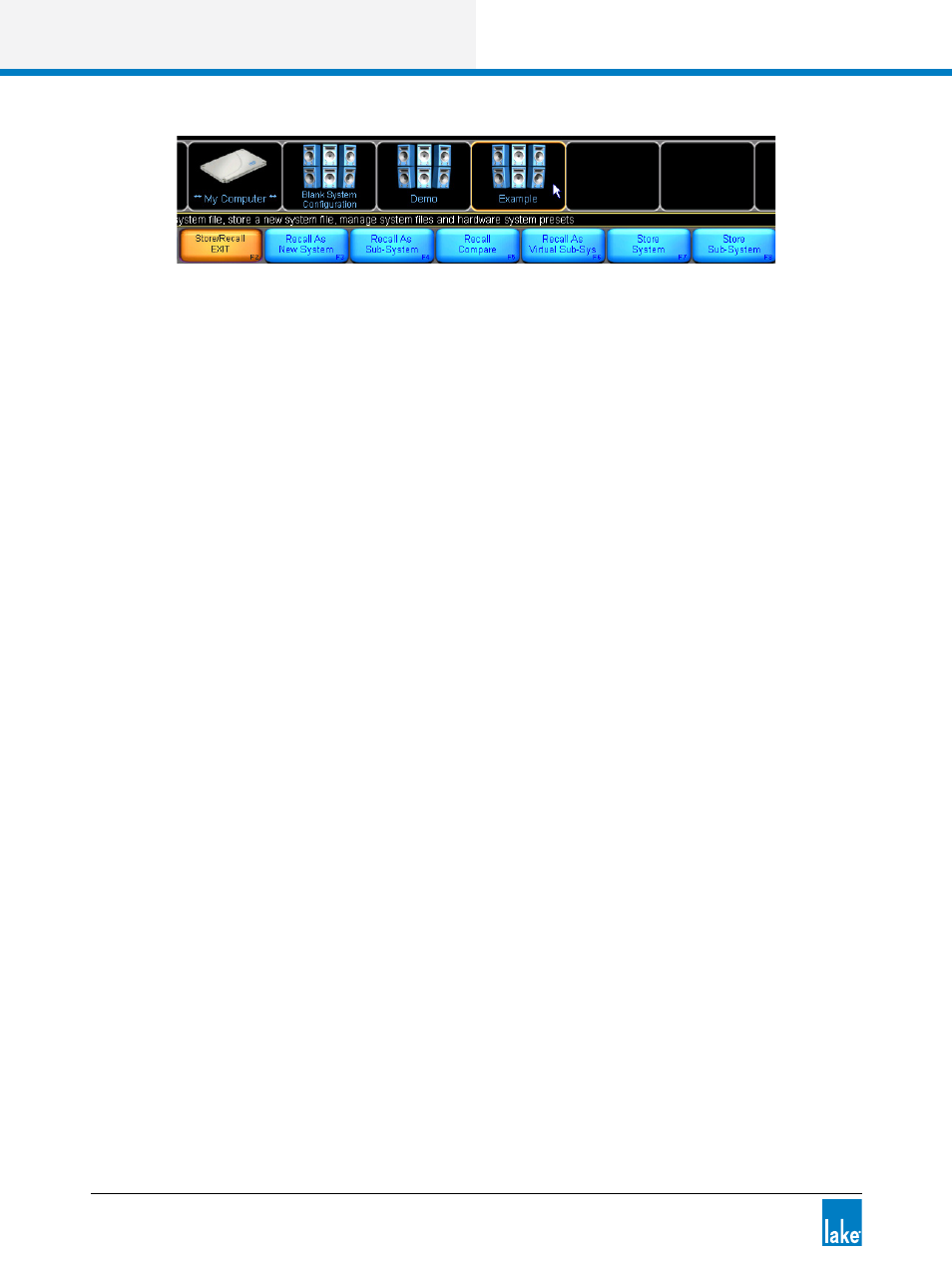

RECALL AS NEW SYSTEM clears current configuration and loads the selected configuration.
▸
RECALL AS SUB-SYSTEM retains the current configuration and appends the selected configuration.
▸
RECALL COMPARE allows a comparison between the data stored on file and the current system
configuration.
▸
RECALL AS VIRTUAL SS (Sub System) loads the data from the file into a virtual offline system, append-
ing it to any currently recalled system configuration.
▸
STORE SYSTEM stores the entire configuration.
▸
STORE SUB-SYSTEM stores only the data in the selected Modules and Groups.
Individual Module settings can also be stored to a file. The single-Module file stores everything about a
particular Module, including its EQ overlays, but does not retain Frame data (such as I/O config) or Group
assignments. This file can be recalled into any Module of the same type (Contour/Mesa).
4.7.5 Storing a Single Module File
To store the settings of a single Module:
1. Tap the HOME button, then tap MODULES.
2. Select the Module ‘My 3-Way’.
3. Tap MODULE STORE/RECALL.
4. Tap FILE UTILITIES, then NEW FOLDER.
5. Enter the folder name ‘Test’, and tap OK.
6. Tap FILE UTIL EXIT
7. Double-tap the folder icon labelled ‘Test’ on the scroll bar to open it.
8. Tap NEW STORE, name the file My 3-Way, then tap OK.
