Lake Controller Operation Manual Rev 1.5.4
Modules Menu Reference
139
The parametric [PEQ] and graphic [GEQ] overlays for
the crossover section also affect the auxiliary output
channel when the input switch is set as shown in
Figure 8-21.
Simplified View Input Toggle (MY8-LAKE Mesa Mode Only)
For an MY8-LAKE in Mesa Mode, the default I/O configuration view is set to Simplified View. In this view,
either the Host output or AES input can be selected as the source input signal. The Input Mixer and Input
Router are not available; the input selector toggles between Host Output and AES Input.

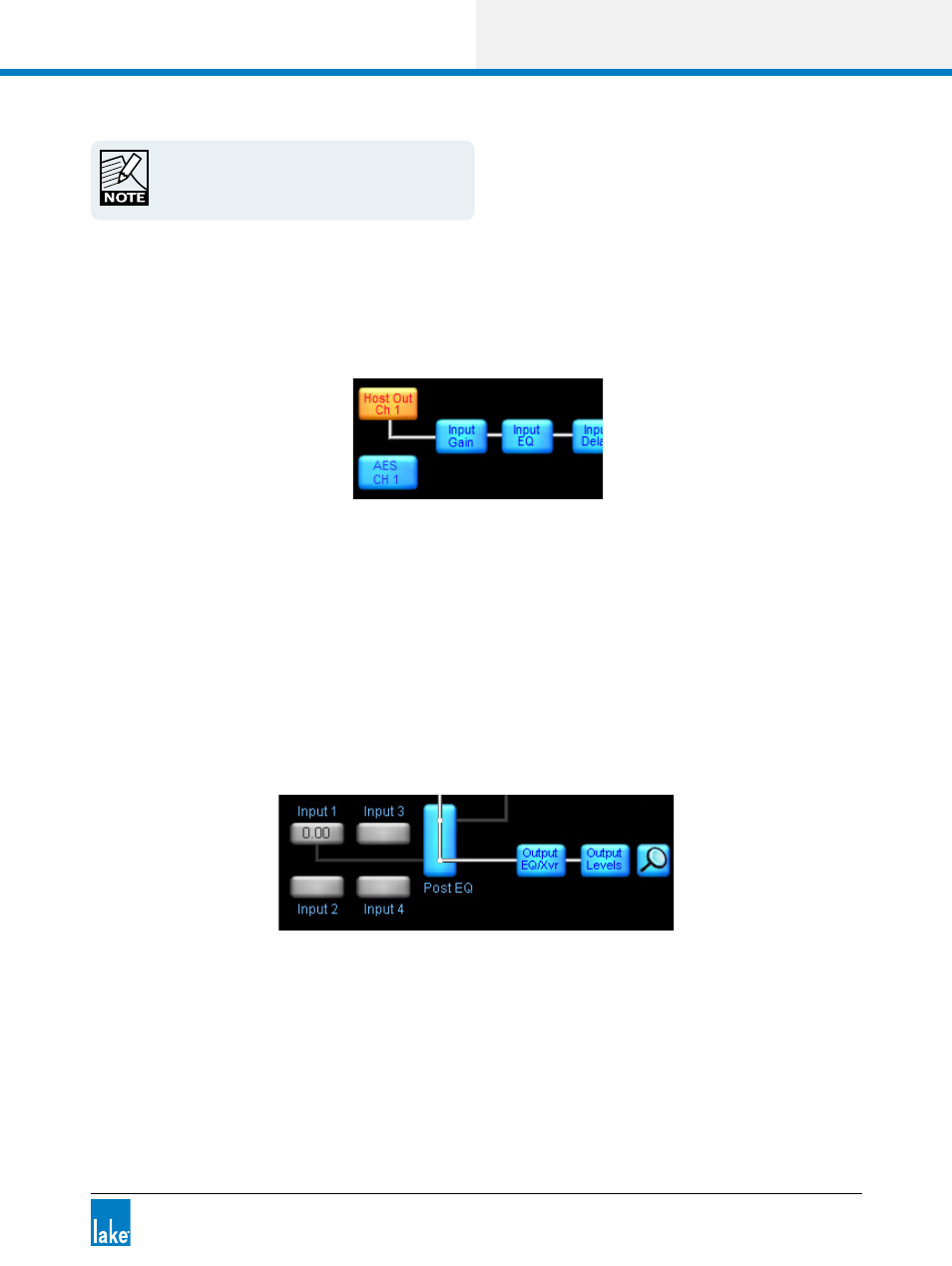

Figure 8-22: MY8-LAKE Simplified View Input Mixer
Please refer to section 22.4 for further information on Simplified View.
8.2.8 Output Configuration
The Output Configuration window is displayed either after tapping the zoom button located to the right
of each output on the right side of the I/O CONFIG page, or after loading a Module file. The automatic
display of the Output Configuration following a Module Recall can be enabled or disabled from this screen.
A summary of the output connections for each Module appears at the bottom of each Module cell on the
I/O CONFIG page.
Figure 8-23: Output Configuration Zoom Button
After tapping any of these zoom buttons, an Output Configuration window is displayed, which looks similar
to that shown in Figure 8-24. The options and number of channels available on this screen depend on the
type of Lake device currently selected.
