To add an EQ filter to a parametric EQ overlay:
1. Tap the required parametric EQ shape (C, D, E, or F).
2. Tap again anywhere on the EQ curve (H).
3. Boost/cut the frequency gain by dragging the filter point up or down.
If a mouse with a wheel is attached to the com-
puter, you can use the wheel to adjust the gain of
the selected filter.
4. Adjust the frequency by dragging the filter point left or right.
If FREQUENCY LOCK (A) is active (orange), you cannot adjust the frequency by dragging the filter point in
the main EQ overlay display. Deactivate FREQUENCY LOCK (A) or use the EQ Tool (J) to adjust frequency.
6.3.4 Graphic EQ Screen
The Lake Controller provides a 28-band graphic EQ overlay. Figure 6-9 shows the Graphic EQ (GEQ2) screen
along with letters marking its key functions.

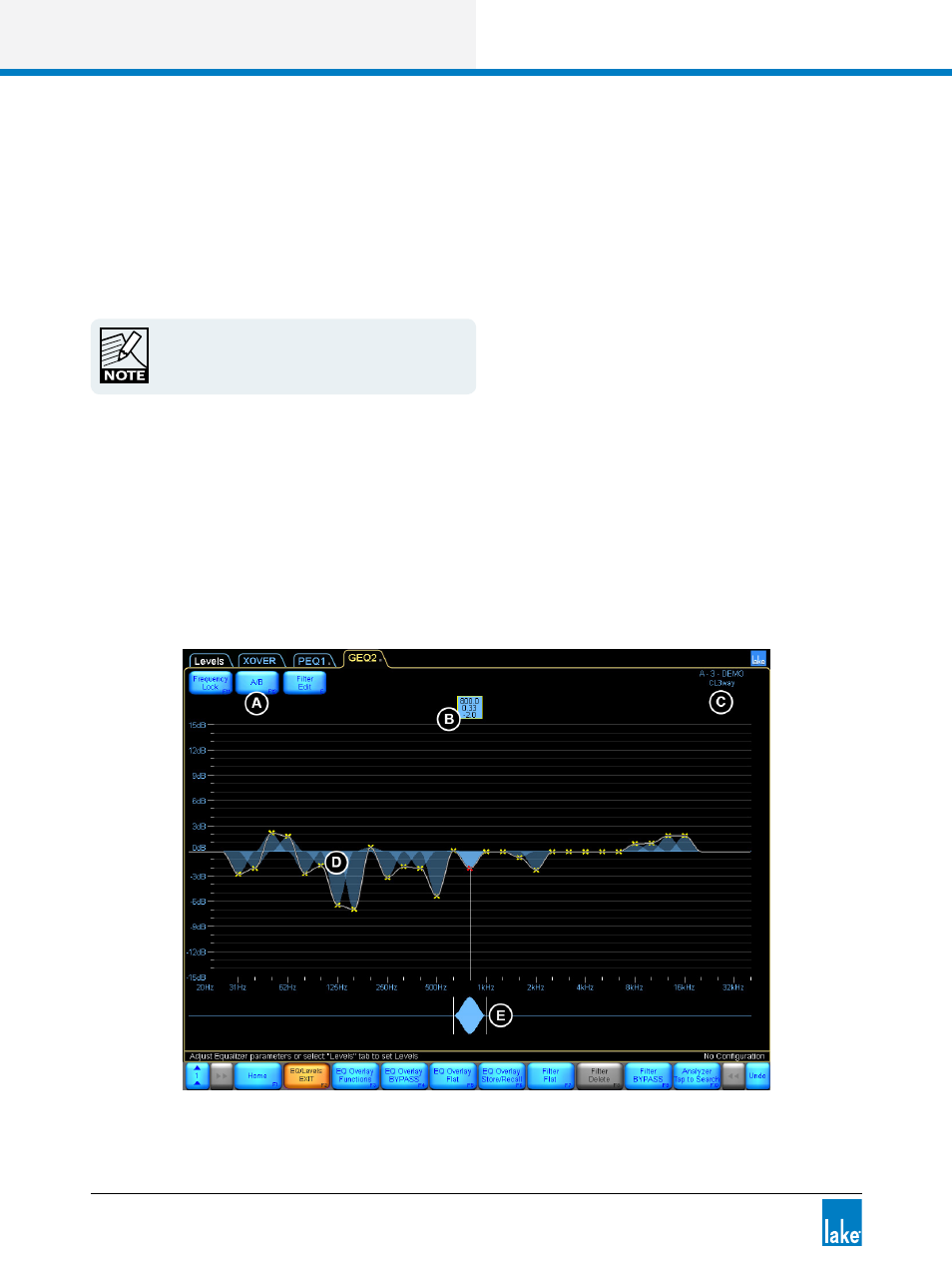

Figure 6-9: Graphic EQ Overlay
