Lake Controller Operation Manual Rev 1.5.4
Modules Menu Reference
123

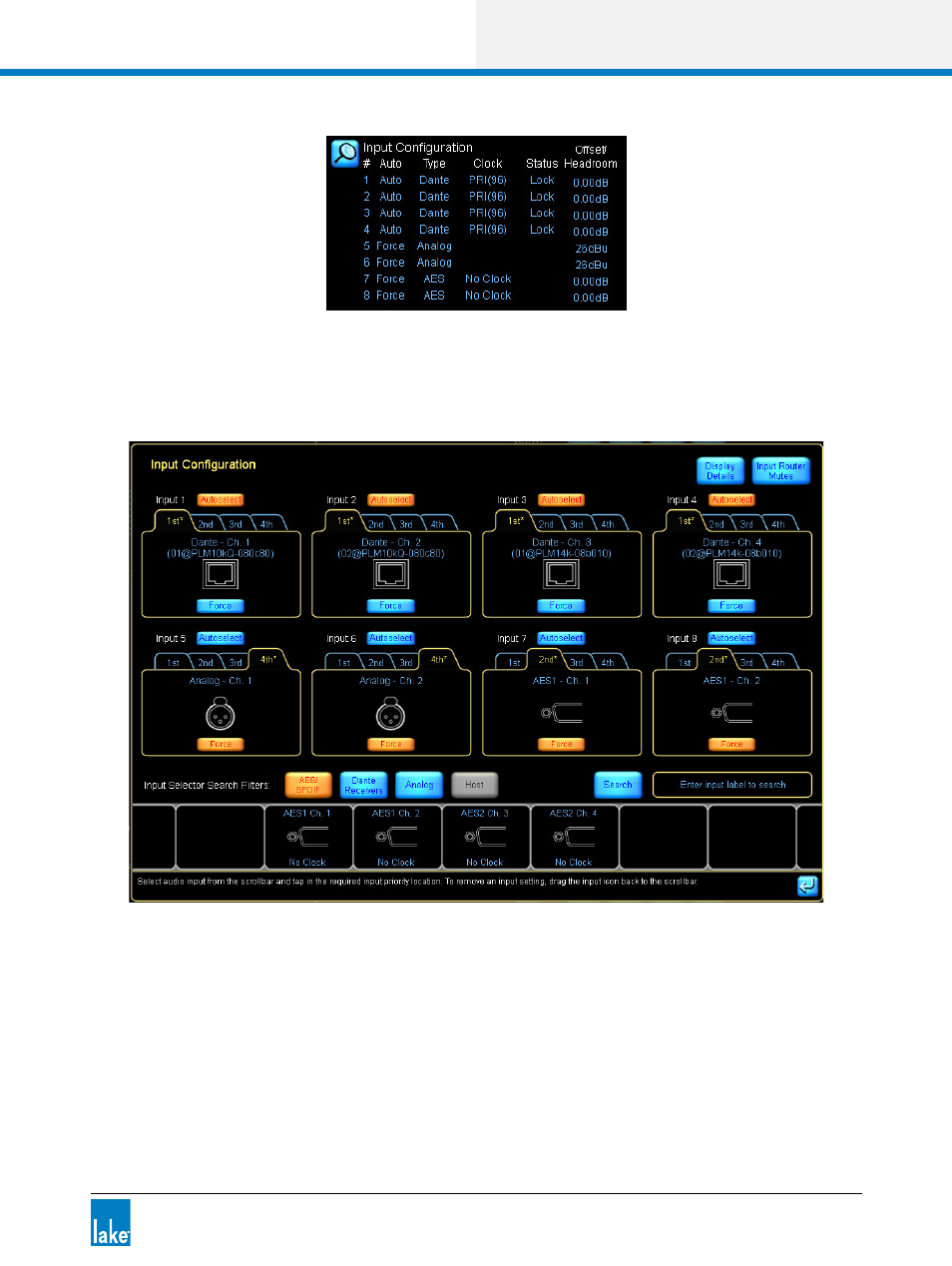

Figure 8-7: Input Configuration Summary on I/O Config screen
After tapping the zoom button or anywhere on the text, an INPUT CONFIGURATION screen similar to that
shown in Figure 8-8 will be displayed. The number of available input routers varies depending on the product
type
Figure 8-8: LM 44 Input Configuration Screen
8.2.2.1 Autoselect
The input auto-selection feature enables the set up of a redundant system. The device will attempt to use
the first signal; if the first signal is unavailable it will try the second, third, or fourth signal.
By default Priority 1 is set to Dante Receivers, Priority 2 is empty, Priority 3 is AES and Prioirty 4 is Analog.
