Lake Controller Operation Manual Rev 1.5.4
Lake-enabled Amplifier Reference
253
are muted and a sequenced sweep is issued. After the verification procedure has been conducted, the
LOAD RESULTS window appears.
Simultaneous load verification of all Lake-enable amplifiers on the network can be initiated from the
GLOBAL CONTROL tab. Please refer to section 20.9.
LoadSmart verification can be initiated from the
PLM and PLM+ front panel, with a reduced set of
results displayed on the front-panel LCD. Refer to
the relevant Operation Manual for further info.

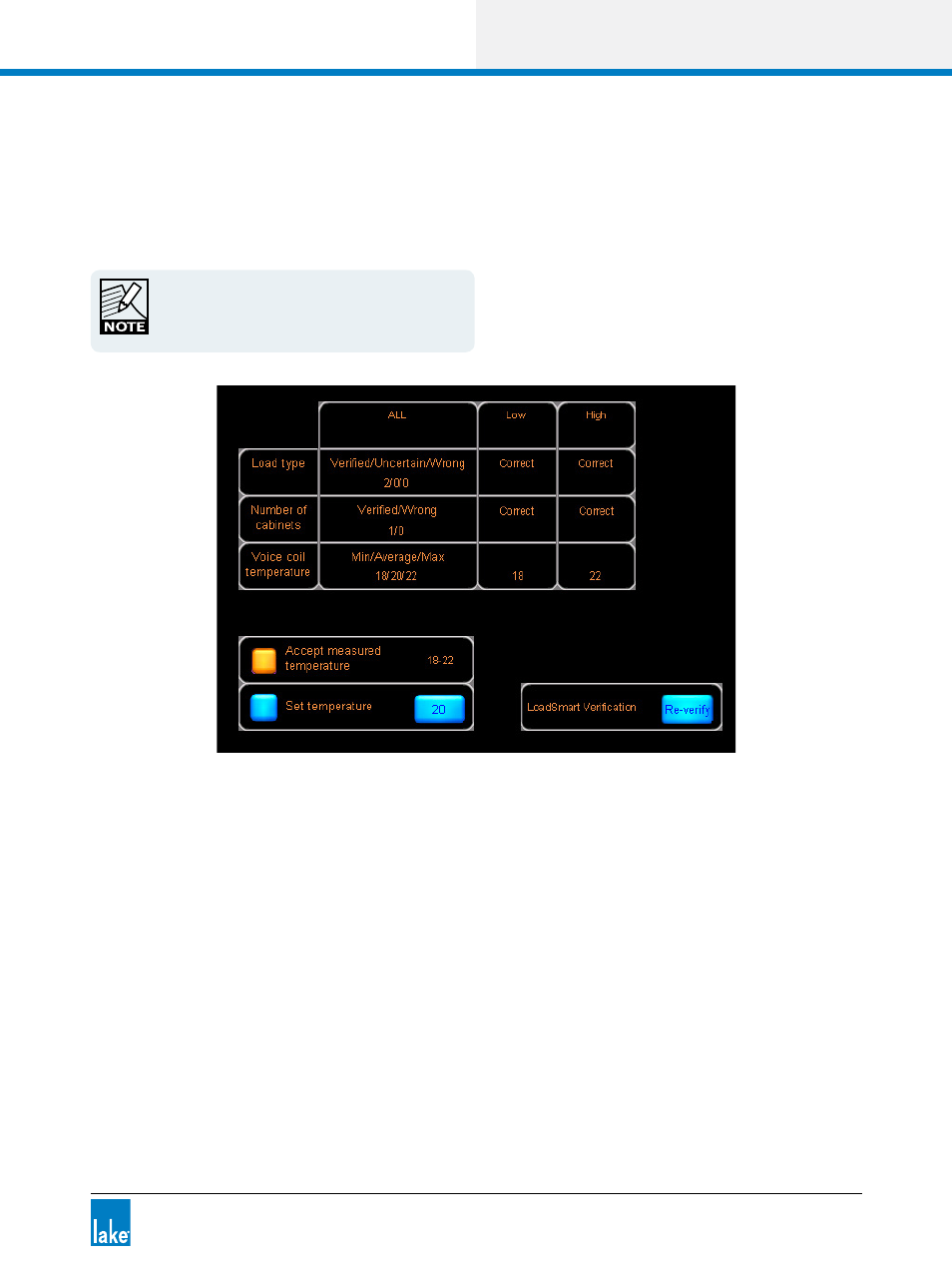

Figure 20-9: Load Verification Results
20.9.5 Settings
The set of buttons at the foot of the page allow the user to select the most convenient measurement units
for the load verification system and cable resistance calculation. The options are:
▸ TEMPERATURE – °C or °F
▸ CABLE LENGTH – Meters or Feet
▸ CABLE GAUGE – AWG numbers or as mm2 cross-section
