Lake Controller Operation Manual Rev 1.5.4
EQ/Levels Menu Reference
105
5. Select the HPF by tapping its filter box located top left of the screen.
6. Select the 18dB BUTTERWORTH filter from scroll bar.
7. Tap FILTER SET, then YES to the warning message.
8. Tap AUX OUTPUT EXIT to return to the EQ/LEVELS menu.
Steep high-pass and low-pass filters (48 dB) require
more EQ resources than shallower slopes (6 dB).
6.5.5 Auxiliary Output Menu Options
The menu options shown in Figure 6-23 are available when an EQ filter is selected on an Auxiliary Output in
the EQ/Levels section of an Auxiliary Output Module.

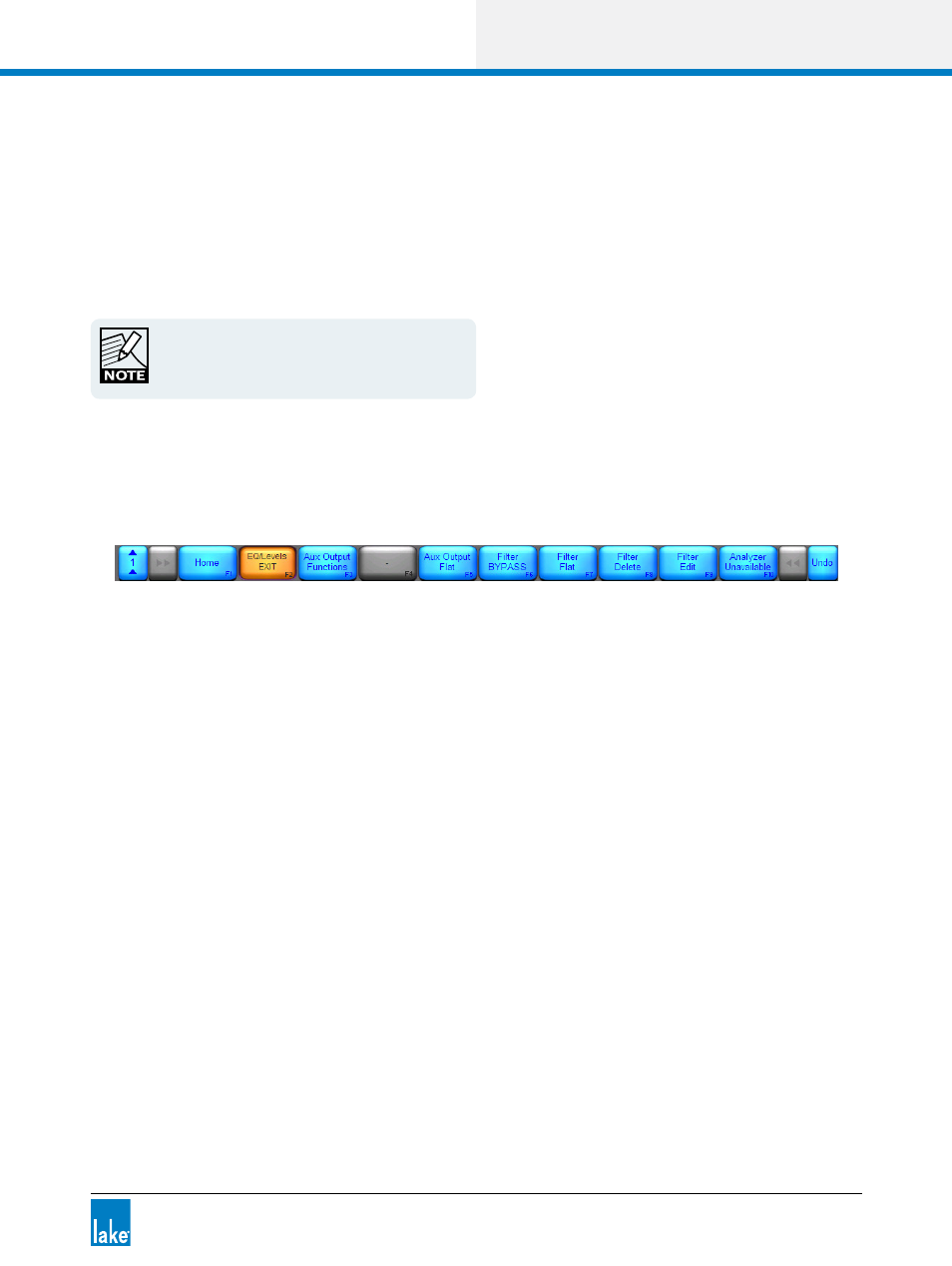

Figure 6-23: Auxiliary Output Button Bar
A summary of the functions relevant to Auxiliary Outputs is shown below; many are identical to those used
on the EQ and XOVER screens.
6.5.5.1 Home
Navigate back to the HOME menu.
6.5.5.2 EQ/Levels EXIT
Navigates to HOME menu, or I/O CONFIG if the current screen accessed via interactive block diagram.
6.5.5.3 Aux Output Functions
Provides EQ preferences, high-pass and low-pass filter options, and OVERLAY COPY/PASTE (and overlay
access controls in Designer Mode).
6.5.5.4 Aux Output Flat
Deletes all EQ filters and disables HPF, and LPF filters on the selected auxiliary output channel.
