Lake Controller Operation Manual Rev 1.5.4
Preset Manager
297
▸ BLUE - available function based on current selection
▸ GRAY - unavailable function based on current selection
27.3 Working with Frames
27.3.1 Selecting a Frame
To select a single Frame, tap the associated row in column C. The selected Frame is highlighted orange.
Buttons are enabled and disabled depending on the current selection. With one or more Frames selected,
the presets are displayed in the column to the right.

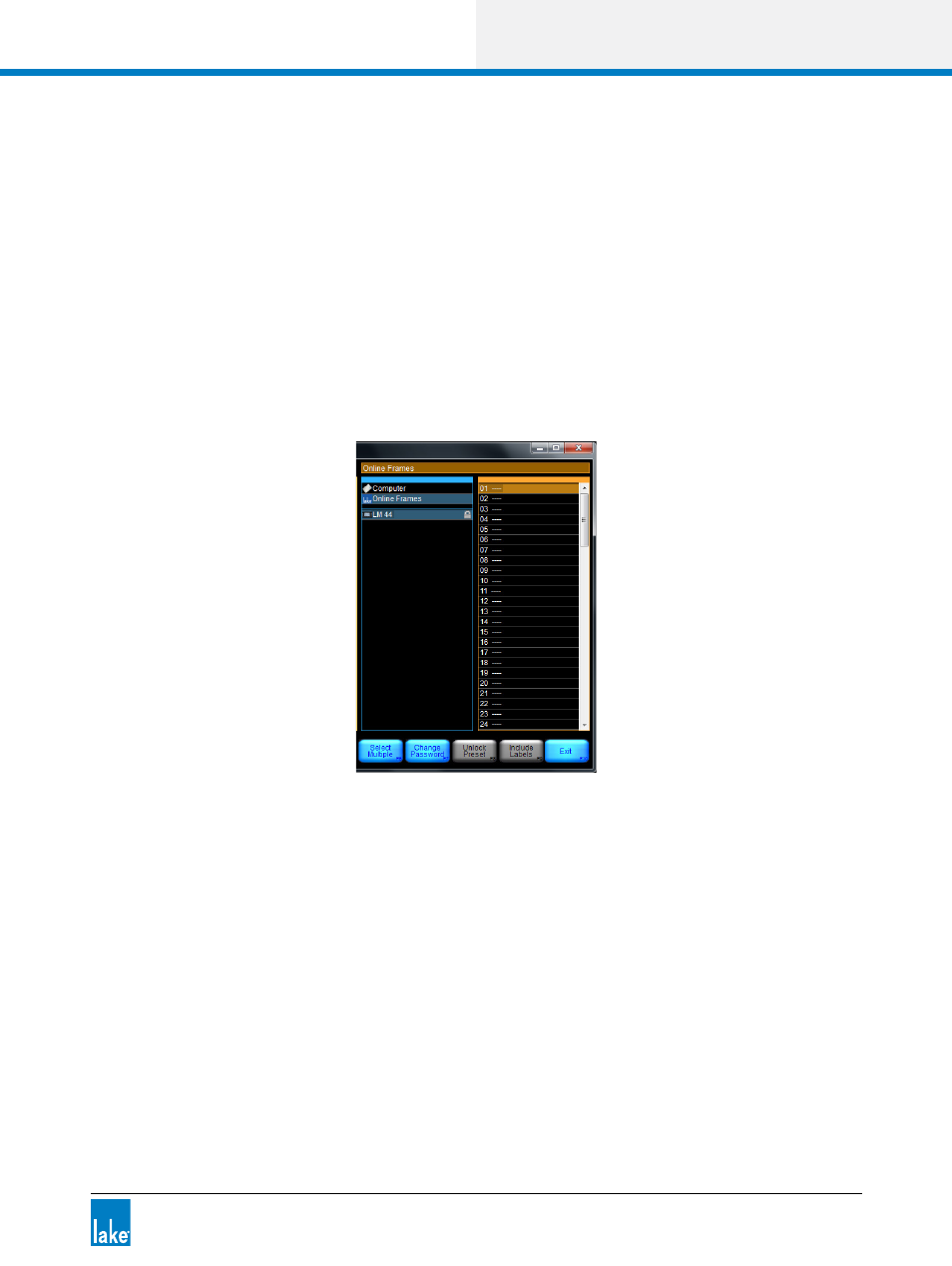

Figure 27-2: Online Frames
27.3.1.1 Rename Frame [F5]
Allows the name of the selected Frame to be changed. Only alphanumerical characters are accepted.
27.3.1.2 Select Multiple [F6]
Allows the selection of multiple Frames/presets by tapping multiple times on column C or D.
Equivalent to holding down [CTRL] on a keyboard.
27.3.1.3 Set Frame Password/Change Password [F7]
Sets or changes the current Frame password.
