9.3 Module Type Abbreviations

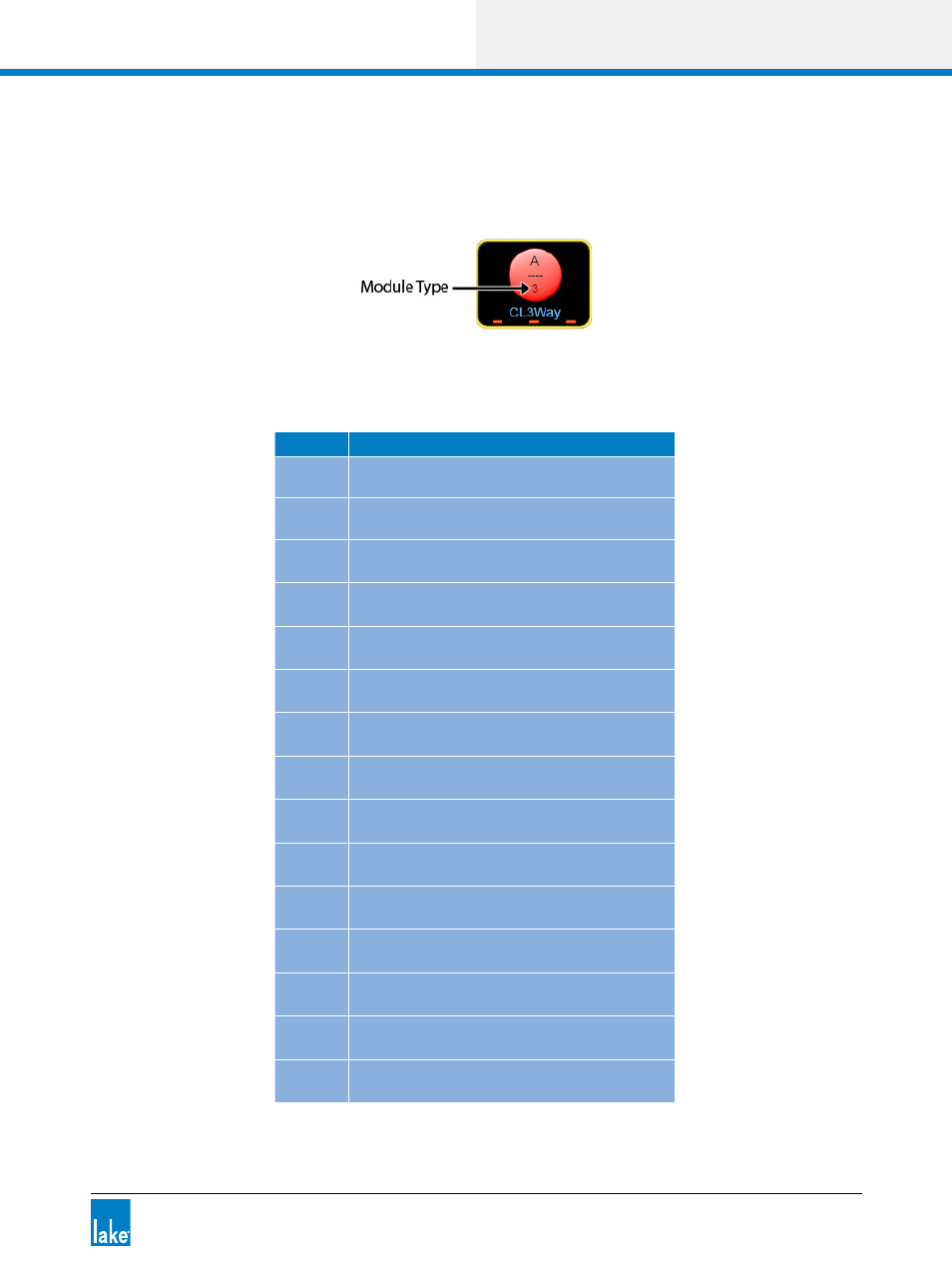

Figure 9-1 identifies the Module type abbreviation code.
Figure 9-1: Module Icon indicating Module Type Code
Table 9-1 describes the various abbreviation codes along with the associated Module description.
Abbr. Description
1 Classic 1-Way or 1-Auxiliary Outputs
2 Classic 2-Way or 2-Auxiliary Outputs
2+1 Classic 2-Way + 1-Auxiliary Outputs
3 Classic 3-Way or 3-Auxiliary Outputs
3+1 Classic 3-Way + 1-Auxiliary Outputs
4 Classic 4-Way or 4-Auxiliary Outputs
5 Classic 5-Way or 5-Auxiliary Outputs
6 Classic 6-Way or 6-Auxiliary Outputs
LP2 Linear Phase 2-Way + 1-Auxiliary Outputs
LP3 Linear Phase 3-Way
LP4 Linear Phase Brick Wall 4-Way
FIR1 FIR 1-Way
FIR2 FIR 2-Way
FIR3 FIR 3-Way
MEq Mesa EQ
Table 9-1: Module Type Abbreviations
