268
Lake Controller Operation Manual Rev 1.5.4
LM Series Reference and Operation
21.1.2 Configuring Pass-Thru Input to Output via Input Router
To configure the a pass-thru configuration via an input router:
1. Navigate to HOME > MODULE > IO CONFIG > INPUT CONFIGURATION.
2. Configure the input router with the relevant inputs and priorities as described in section 8.2.2.
To route the signal from the pass-thru input routers to a particular output:
3. Navigate to HOME > MODULE > IO CONFIG > OUTPUT CONFIGURATION.
Please refer to section 8.2.8 for further details.
4. Tap the left arrow under the label ‘Source’.

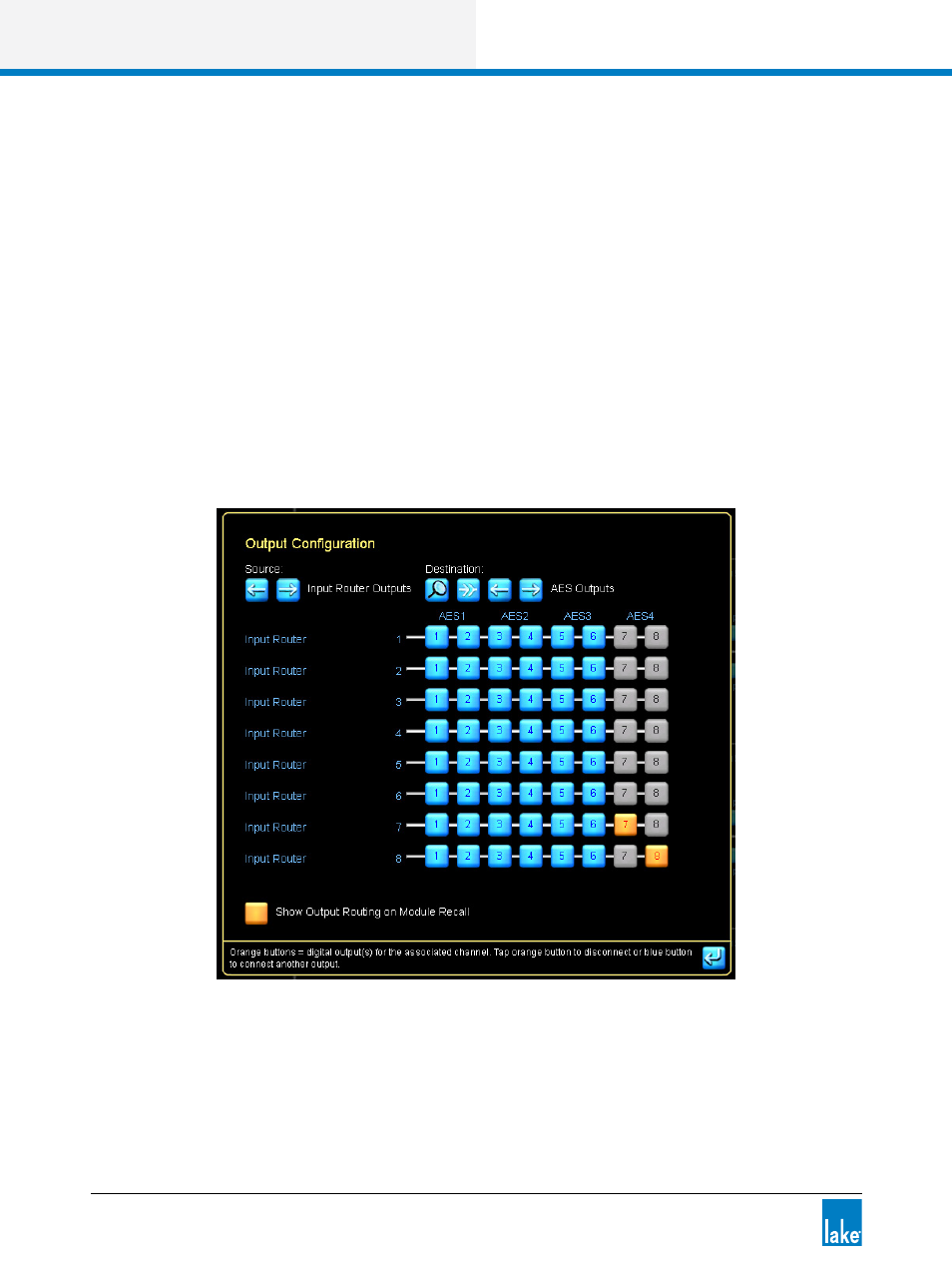

The source will change to display ‘Input Router Outputs’ similar to that shown in Figure 21-3. This
example has the source from Input Router 7 & 8 directly patched to AES4 (Out 7 & 8).
Figure 21-3: Output Configuration - Input Routers selected as Source
5. Use the ‘Destination’ arrows to select the required output type, then select an available (blue) routing
point to connect the signal from the Input Router to one of more outputs.
