Profile Main Screen

2-31

CONFIDENTIAL – Covered by ADS Software License Agreement

• Trigger Select the device for which you want to output entity

data through the Analog Output Card.

• Min Scale Enter the data value that will correspond to the

weakest signal available in the scale (4 mA). This value
should reflect the lowest possible value for the data.

• Max Scale Enter the data value that will correspond to the

strongest signal available in the scale (20 mA). This value
should reflect the highest possible value for the data.

Note: To use another channel on the Analog Output
Device, select the checkbox and edit the parameters
corresponding to the other channel.

Analog Output Card Device (FlowShark)

Edit the analog output card device associated with a FlowShark
monitor in the following way:

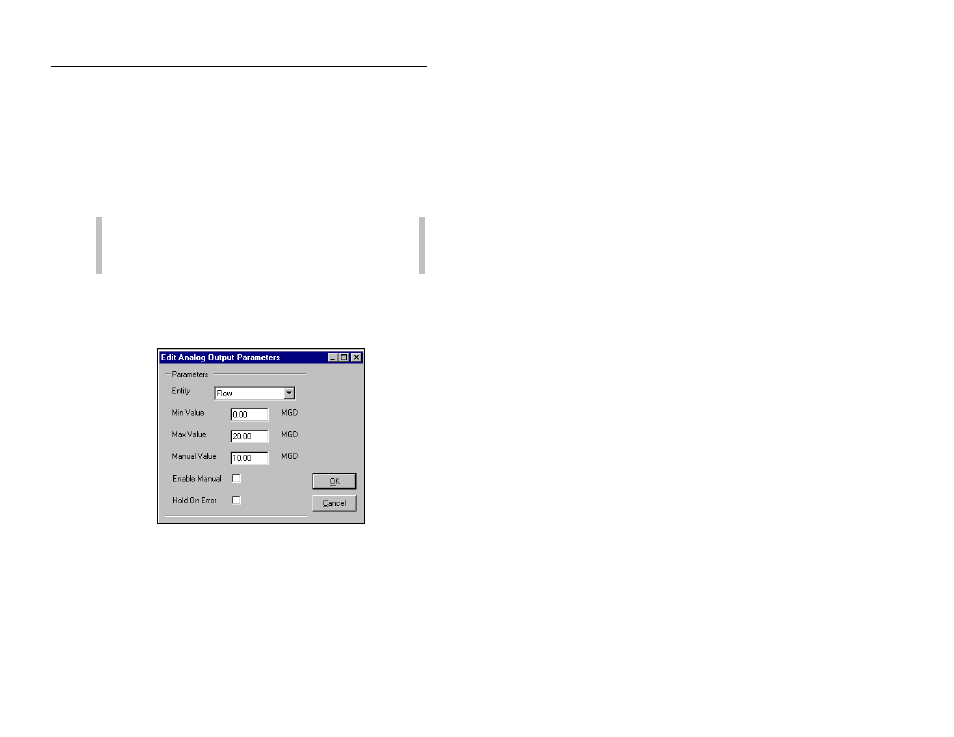

Edit Analog Output Parameters (FlowShark)

• Entity Select the entity type for which you want to output

data.

• Min Value Enter the data value that you want to correspond

to the weakest signal available in the scale (4 mA). This value
should reflect the lowest possible value for the data.
