Block Function Editor 13-3
CONFIDENTIAL – Covered by ADS Software License Agreement
1998 - 2012 ADS LLC. All Rights Reserved.
How to Use the Block Function Editor
Block
Function
Editor
button
Access the Block Function Editor by selecting a monitoring point
and then the Block Function Editor toolbar button from the Profile
main screen.
Using the Block Function Editor successfully requires
understanding how to create IF/THEN conditional statements. The
IF portion of the statement establishes a comparison for which the
result of the comparison must be true in order for the THEN action
of the block edit to occur. The Block Function Editor provides the
statement format; all you have to do is select the statement variables.

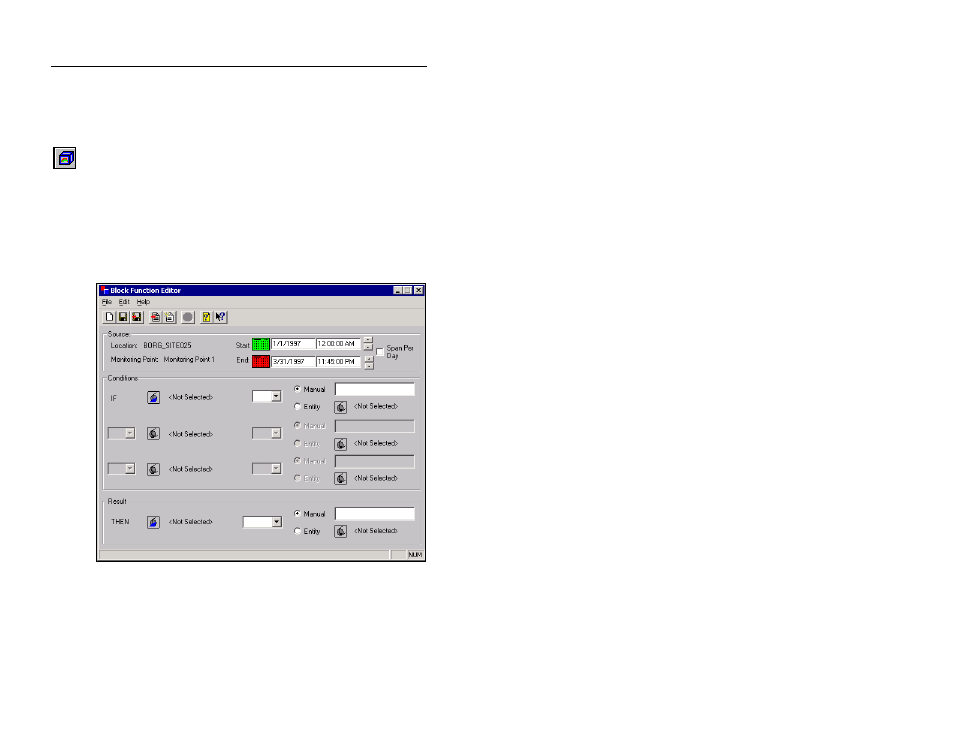

Block Function Editor dialog
