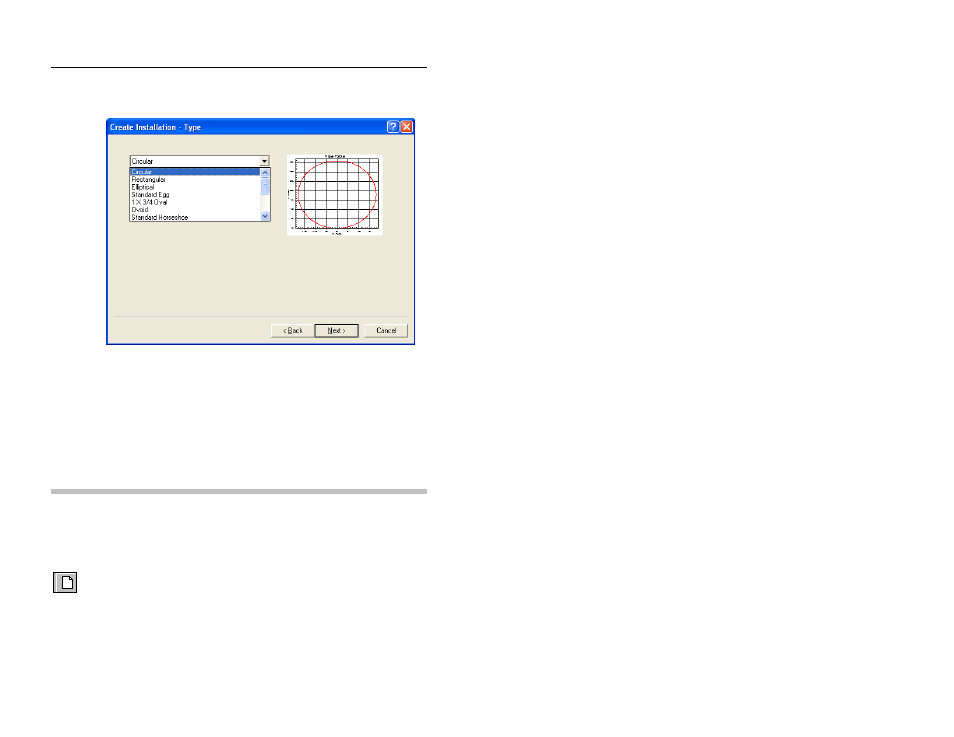

5. Select the appropriate installation from the Type drop-down
list.
6. Select Next.
7. Continue responding to the wizard questions until the
installation is completely defined.
8. When prompted to save the pipe table, select Yes.
The installation will be saved to the monitoring point. The
Installation Generator screen appears.
Creating Weir Installations
Create a Weir installation for a monitoring point using the Create
Installation wizard. Provide a response to each wizard question to
successfully develop the new installation.
New
button
1. Access the wizard by selecting the New toolbar button from
the Installation Generator screen.
The Create Installation – Introduction dialog appears.
