Repeat the three previous steps from Step 6 for each
additional device that requires new settings or modification
for the currently selected monitoring point.

7. (applicable only to locations with a second monitoring point)

Repeat steps 4 through 6 to assign a device(s) to the other
monitoring point and edit the device parameters.

8. After editing the devices as necessary, select the OK button to

save the device selections and parameter modifications to the
LIF.

Analog Input Device

Edit the analog input device in the following way:

Note: The following instructions apply to all ADS
monitors using an analog input device except FlowShark
monitors. For instructions on editing an analog input
device associated with a FlowShark monitor, refer to
Analog Input Device (FlowShark) on page 2-29.

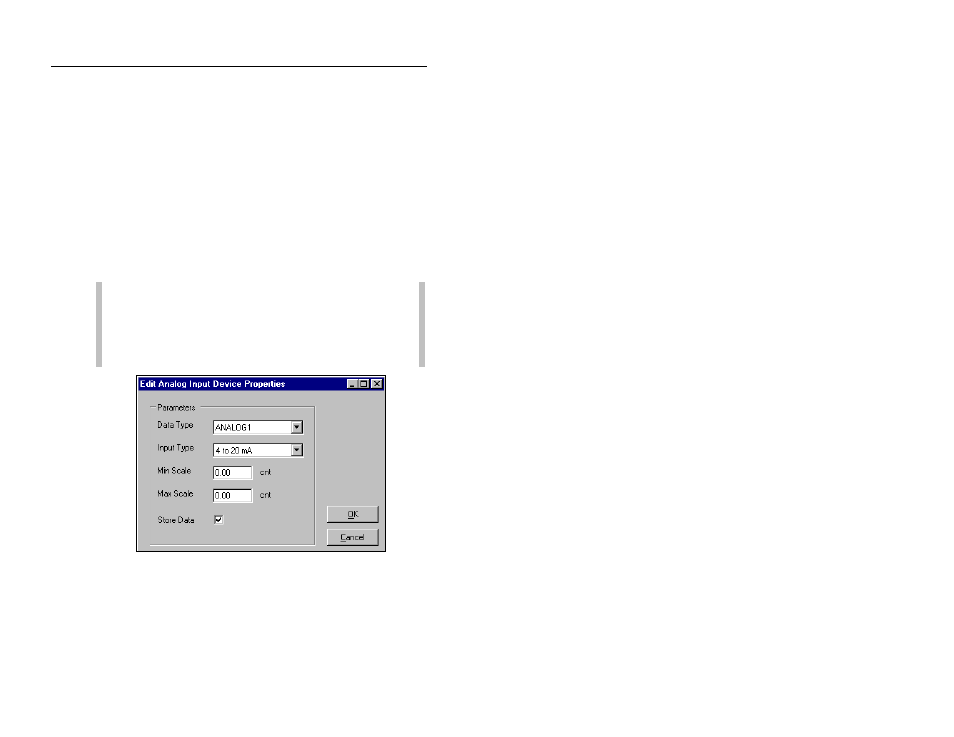

Edit Analog Input Device Properties

• Data Type Select the type of data this signal represents to

ensure Profile applies the correct unit of measure to the data.
Profile defaults to ANALOG1.
