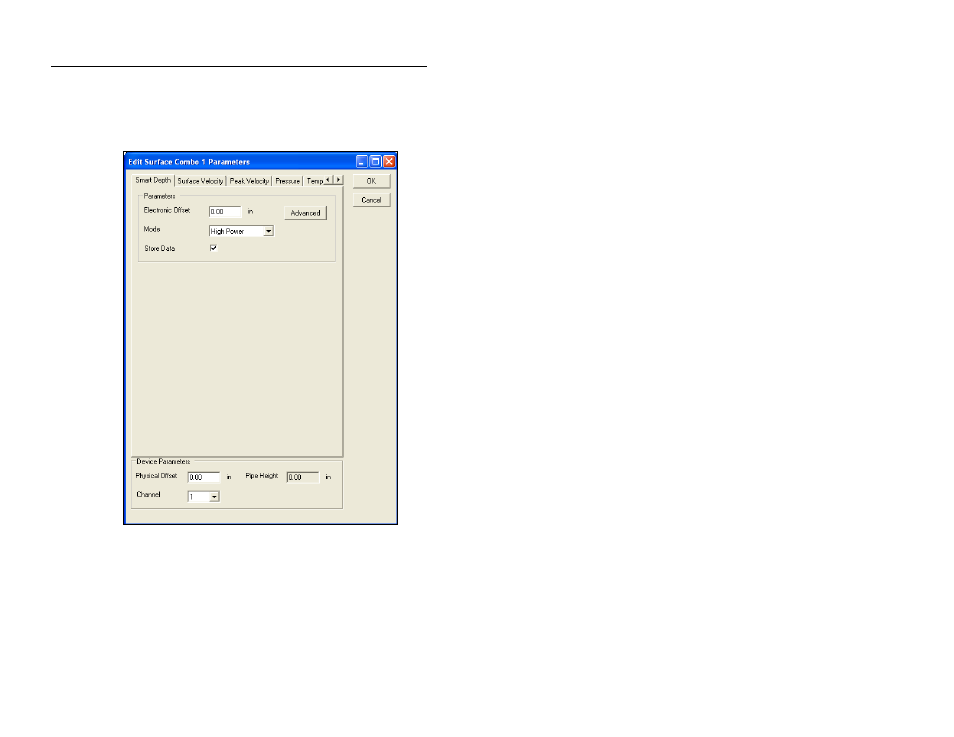

The following parameters are located in the Device Parameters
section at the lower portion of the Edit Surface Combo 1 (or 2)
Parameters window and pertain to the physical installation of the
sensor.

Edit Surface Combo Parameters

• Physical Offset Enter the physical distance from the face of

the sensor (horizontal surface with crystals) to the crown of
the pipe. This value is used to calculate the depth of the flow.

• Pipe Height This field displays the height of the pipe at the

monitoring point where the sensor is installed. This value is
