Scattergraph Editor

12-13

CONFIDENTIAL – Covered by ADS Software License Agreement

Curve
Properties
button

1. Select the Edit > Curve Properties option or the Curve

Properties toolbar button.

2. Select the Setup tab.

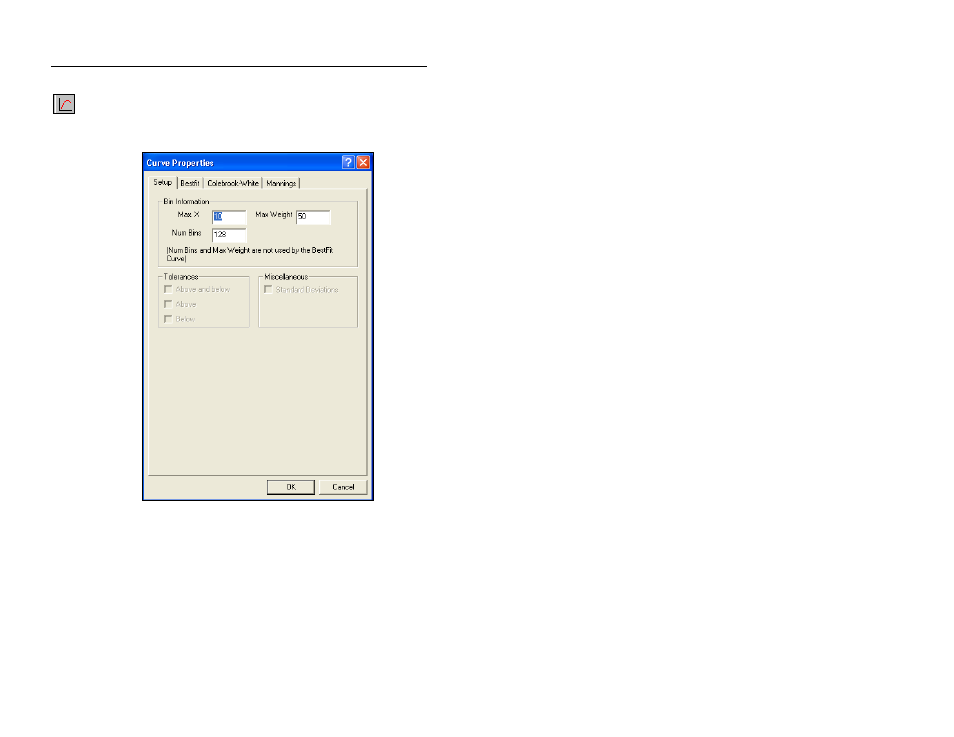

Curve Properties > Setup tab

3. In the Max X field, use the default value of the maximum depth

for the data range selected, or adjust this value to use only the
scattergraph points below the Max X field value to generate a
curve.

4. In the Num Bins field, use the default value or enter the

number of vertical bins (points) you want to use to generate the
curve.
