Installation Generator

3-15

CONFIDENTIAL – Covered by ADS Software License Agreement

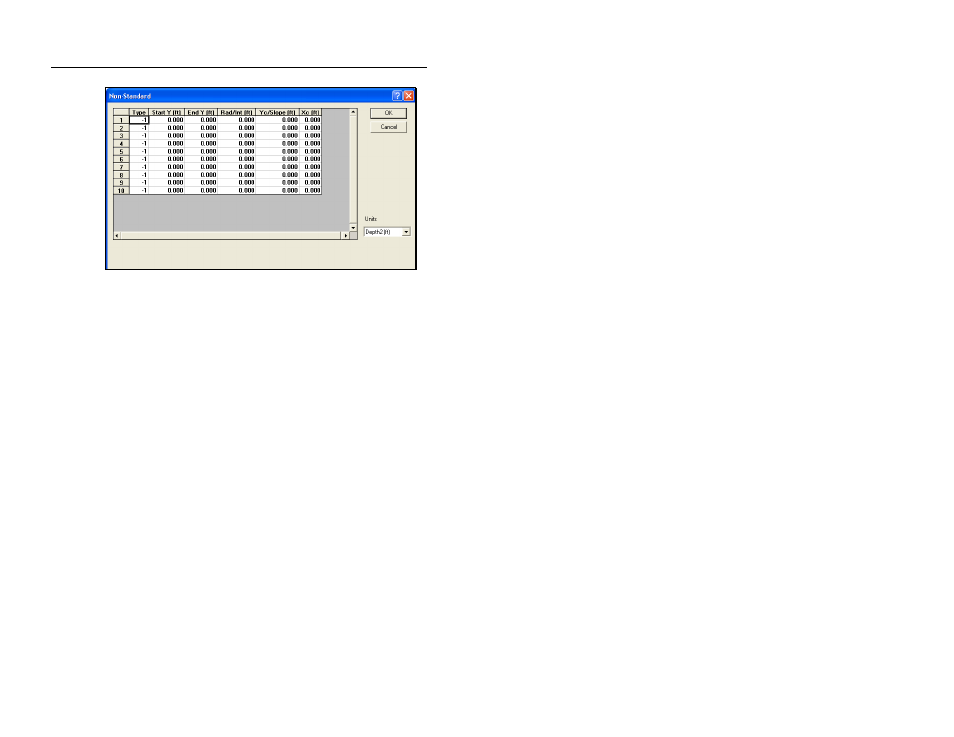

Non-Standard dialog

9. Define the pipe dimensions of the non-standard pipe by

defining each straight line or arc segment. Assume that the
bottom center of the pipe is at the (0,0) graph coordinate with
the Y-axis dividing the pipe vertically in half and the X-axis
running adjacent to the bottom-most point of the pipe. Define
each segment falling to the right of the Y-axis and above the X-
axis. Divide the pipe into segments defined by either arcs (of a
circle) or straight lines. Each segment will fall between lines
parallel to the X-axis. Enter the following information to the
table:



Type Enter 0, 1, or -1 to define each segment.
− Arc Segments Enter 0 to define an arc.
− Line Segments Enter 1 for a straight line.
− Unused Segments Enter -1 to indicate if the line is

unused.



Start Y Enter the value of the bottom-most coordinate of
the segment. The first Start Y is 0. The next Start Y will
equal the End Y of the previous segment.



End Y Enter the value for the segment’s top-most Y
coordinate. The End Y of this segment will equal the
Start Y of the next segment.



Rad/Int Enter one of the following:
