Change the assigned average-to-peak table – ADS Environmental Services Profile Software 950015B6 User Manual

Page 216

Installation Generator

3-35

CONFIDENTIAL – Covered by ADS Software License Agreement

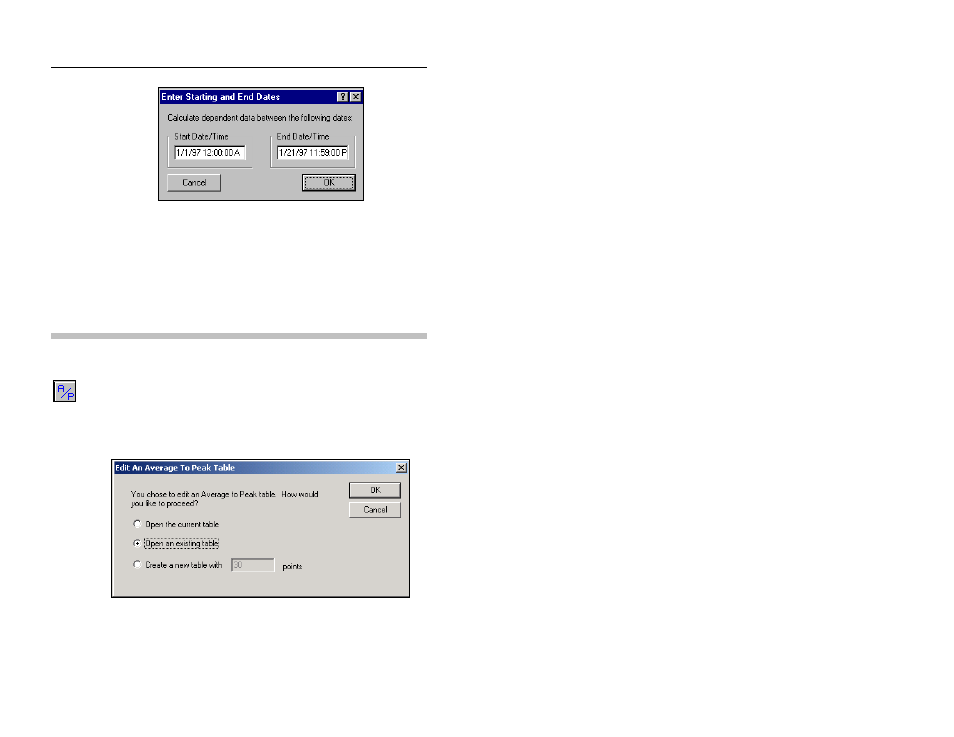

Enter Starting and End Dates dialog

6. Regenerate any dependent data affected by the depth and/or

ratio change(s) by entering the dates of the affected time period
into the Start Date/Time and End Date/Time fields and then
selecting OK.

The dependent data regenerates.

Change the Assigned Average-to-Peak Table

Average-
to-Peak
button

Change the currently assigned Average-to-Peak table to another
previously created table as necessary by performing the following
steps:

1. Select the Average-to-Peak toolbar button to display the Edit

an Average-to-Peak Table dialog.

Edit An Average to Peak Table dialog

2. Select Open an existing table to open a previously created

table.
