2-66 Profile Software User's Guide
CONFIDENTIAL – Covered by ADS Software License Agreement
1998 – 2012 ADS LLC. All Rights Reserved.

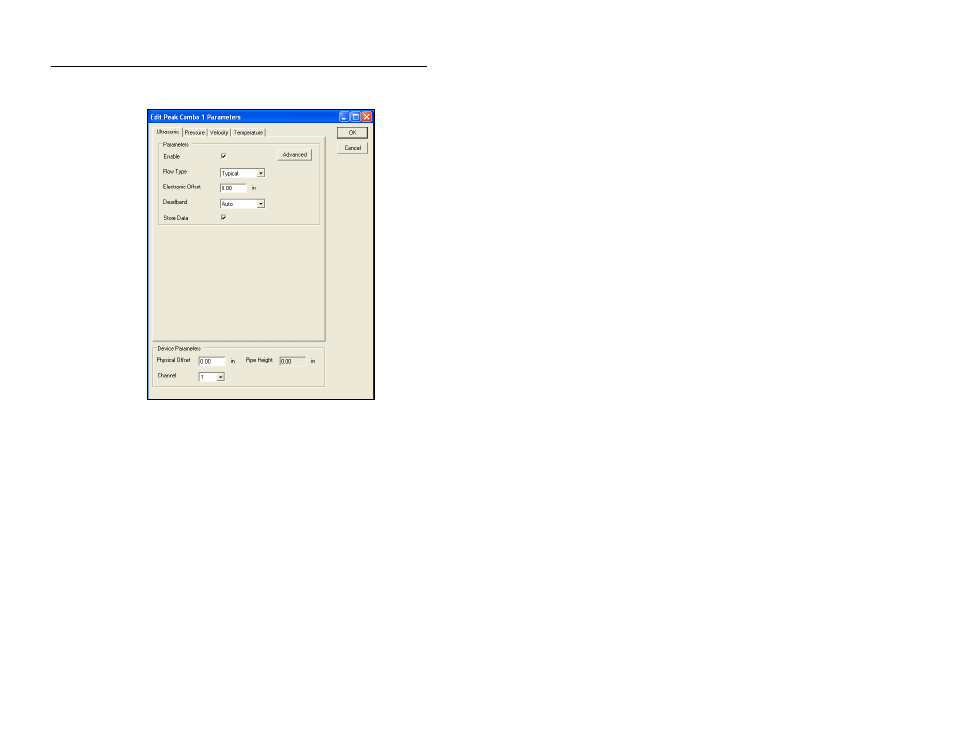

Ultrasonic tab 
Ultrasonic parameters – Peak Combo 1 (or 2)
• Enable Select this checkbox to ensure the monitor begins
taking upward ultrasonic depth readings at the designated
interval upon activation.
• Flow Type Select the option that most accurately reflects
the kind of flow conditions that typically occur at the
monitoring point.
 Typical Flow exhibits a typical diurnal pattern.
 Wet/Stagnant Flow remains in the pipe, but moves only
during wet weather events.
 Usually Dry Pipe typically remains dry, except under wet
weather conditions.
• Electronic Offset Enter the difference that exists between
the depth sensor readings and the manually measured depth.
