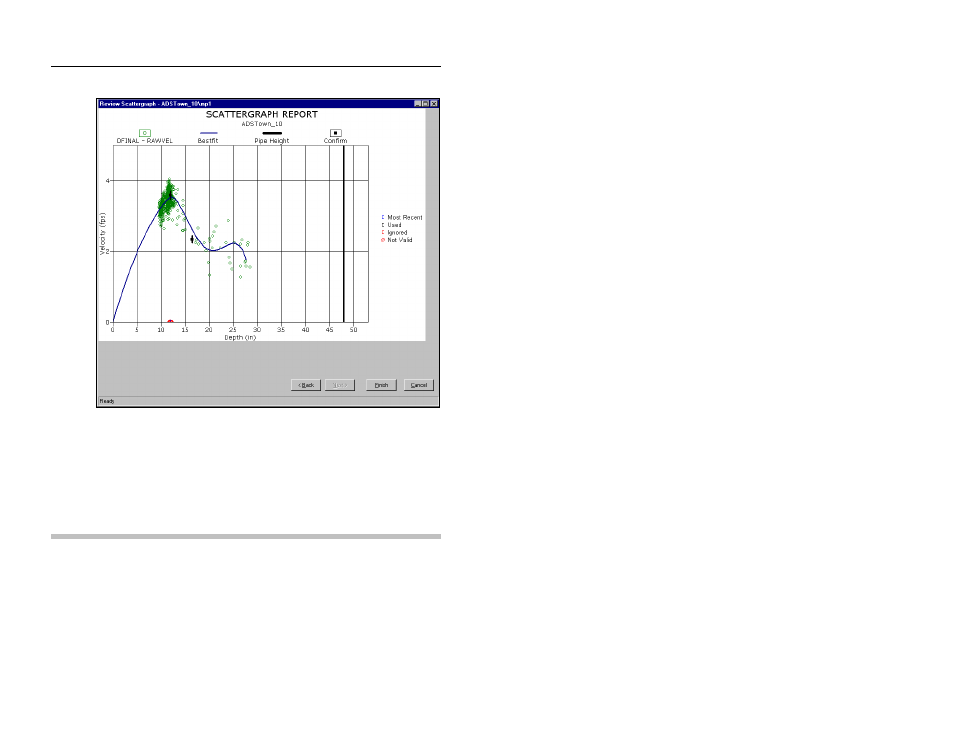

Review Scattergraph dialog

14. Review the scattergraph displaying data from the last collect and

confirmations.

15. Select the Finish button.

16. Select the Close button to return to the Diagnostics dialog.

Confirming Flow Quantity Using a Weir

ADS typically uses a weir to confirm flow quantity at a monitoring
point where the flow depth does not exceed 5 inches because a
portable velocity meter may not produce reliable results. Confirm the
flow quantity using a weir in the following way:
