4. Select the Read button to fire the selected sensor.

The View Sensor Waveforms dialog displays the waveform reflecting
the sensor signal returned.

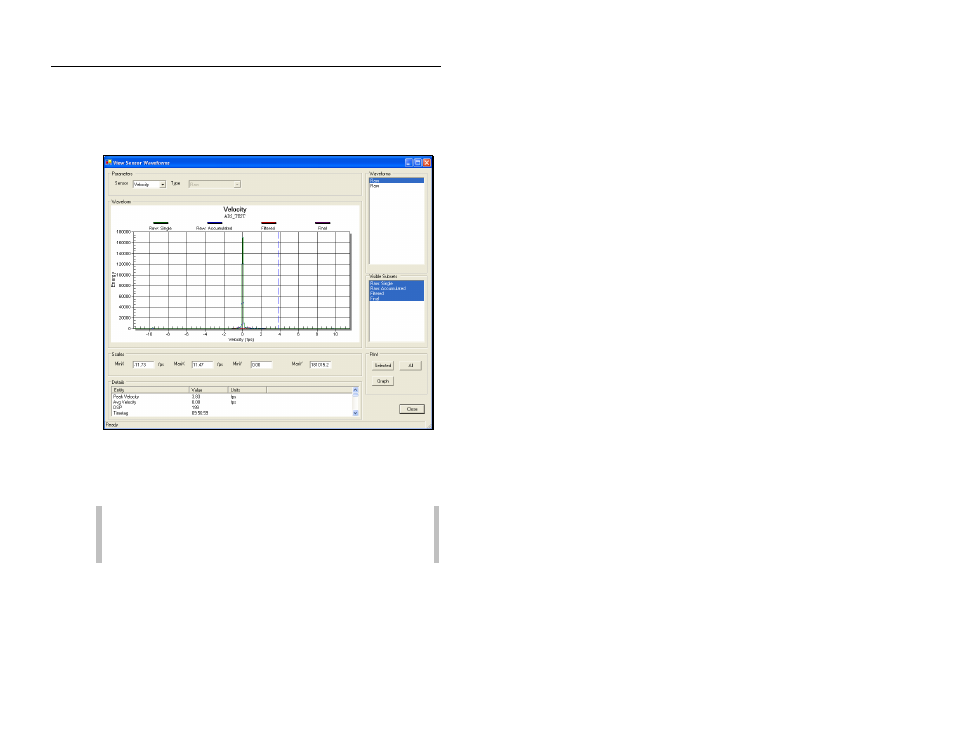

View Sensor Waveforms dialog displays the waveform for velocity

5. Repeat steps 3 and 4 for each additional type of waveform you

want to capture.

6. Select Close to exit the Waveform function.

Note: Profile creates a historical waveform for each
waveform captured which can be reviewed offline using the
Waveform function (Functions > Waveform).
