6-19

CONFIDENTIAL – Covered by ADS Software License Agreement

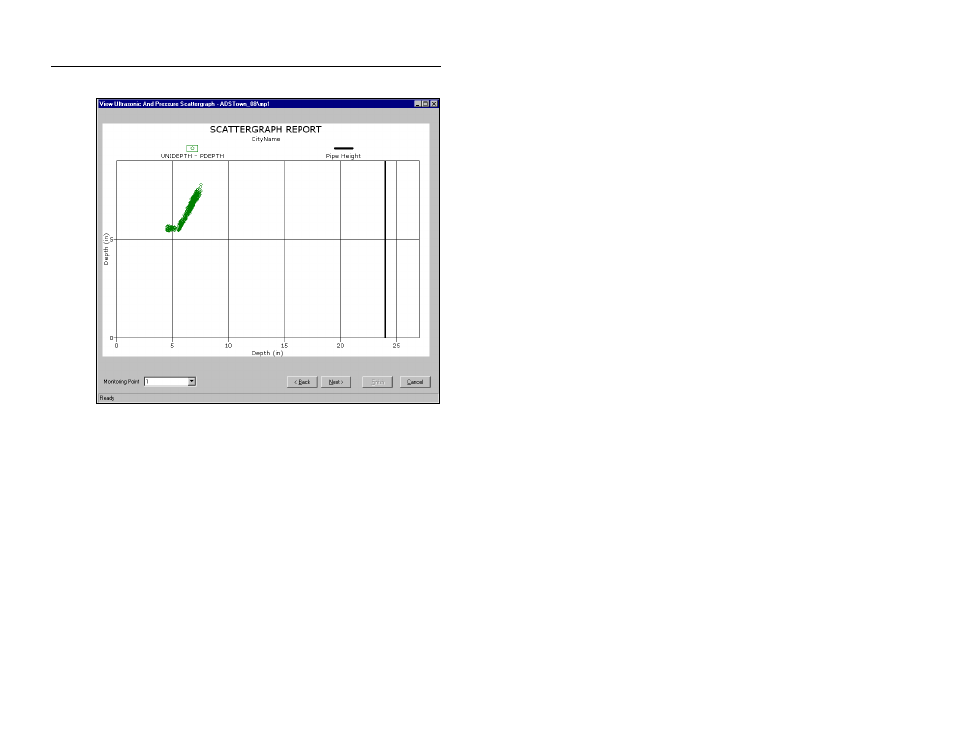

View Ultrasonic and Pressure Scattergraph – [location name] dialog

8. Review the scattergraph data and click the Next button. A

properly performing pressure depth sensor should display a one-
to-one relationship with the UNIDEPTH data.

The Site DR Analysis – [location name] dialog displays the results of
the site data review analysis of the data and any recommendations for
resolving identified issues.
