Profile displays the iso-Q lines on the scattergraph.

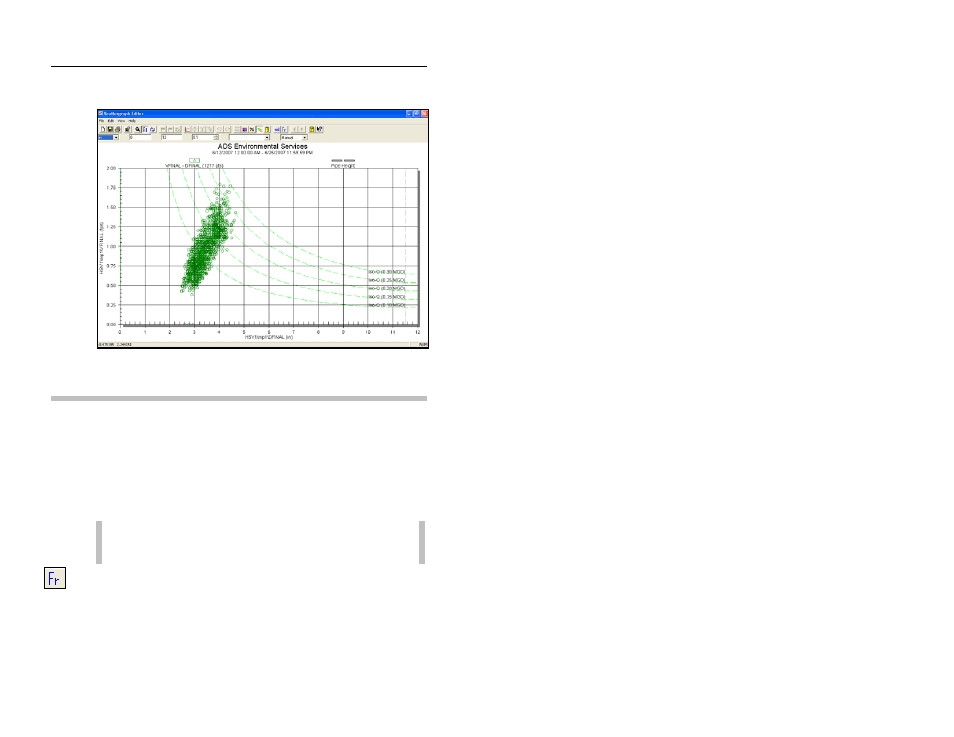

Scattergraph displaying iso-Q lines
Displaying Iso-Froude Lines
Profile includes the ability to display iso-Froude lines on
scattergraphs. Use iso-Froude lines on a scattergraph to reveal and
identify hydraulic conditions such as hydraulic jumps, sewer bores,
and undular jumps and help provide insight into your flow data.
Display the three most important areas of flow: subcritical, critical,
and supercritical using this option.
Note: For best results when evaluating data using iso-
Froude lines use edited data.
Iso-
Froude
button
Display iso-Froude lines by selecting the iso-Froude toolbar button
to display the iso-Froude Lines Setup window. Choose the
desired Mode to display the lines on the scattergraph.
