Displaying Monitoring Point Information
The Hydrograph Editor tool allows you to display the monitoring
point's pipe height, current silt depth, depth event threshold
information, and manhole depth on the hydrograph.
Access the ability to add or remove this information from the
hydrograph by selecting the View > Graph Properties option or
the Graph Properties toolbar button.

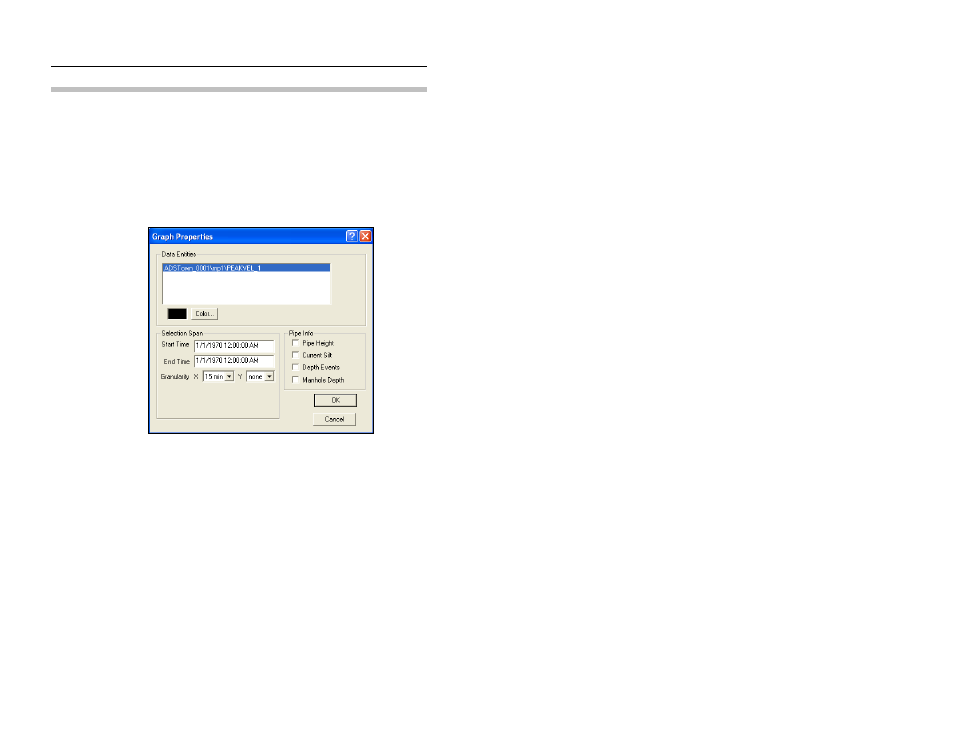

Graph Properties dialog
Toggle the appropriate checkboxes from the Pipe Info section of
the Graph Properties dialog to add or remove the information
from the hydrograph.
• Pipe Height Select this checkbox to display the manually
measured pipe height on the hydrograph.
• Current Silt Select this checkbox to display the most current
field measured silt value on the hydrograph.
• Depth Events Select this checkbox to display alarm/event
threshold information from the monitoring point on the
hydrograph. This includes depth thresholds such as high level,
high high level, low flow (quantity), or low depth alarms.
