Profile Main Screen

2-139

CONFIDENTIAL – Covered by ADS Software License Agreement

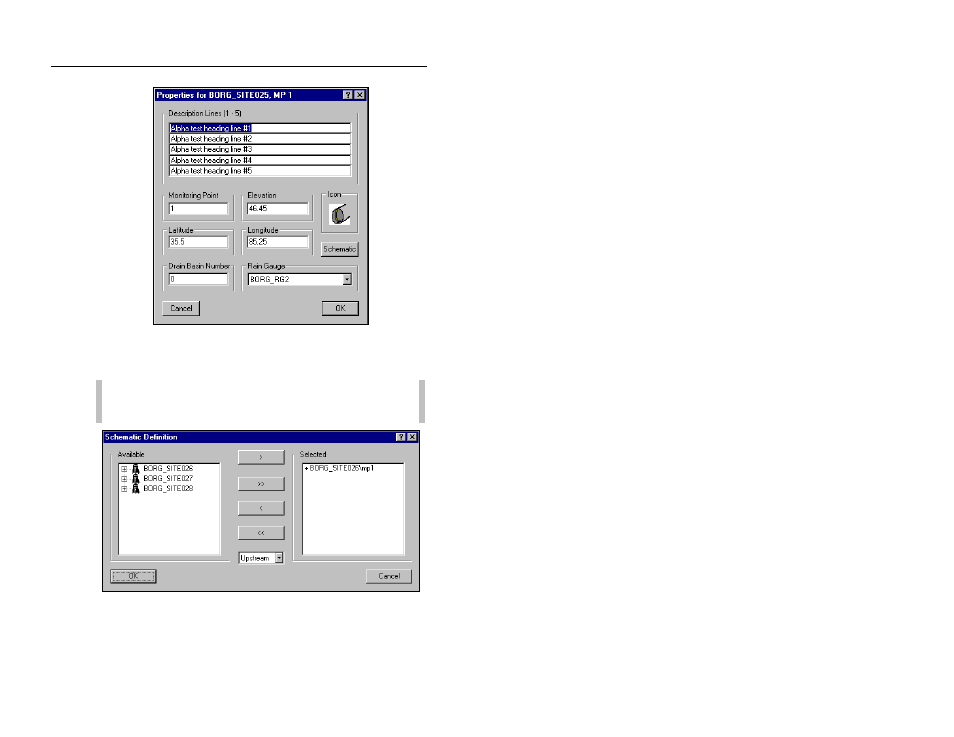

Monitoring point Properties dialog

3. Select the Schematic button to display the Schematic

Definition dialog.

Note: The Available list only contains those monitoring
points for which the QFinal data entity has been generated.

Schematic Definition dialog

4. Develop the schematic by selecting the upstream and overflow

monitoring points from the Available list and adding them to
