Scattergraph Editor

12-7

CONFIDENTIAL – Covered by ADS Software License Agreement

Graph
Properties
button

1. Select View > Graph Properties or the Graph Properties

toolbar button.

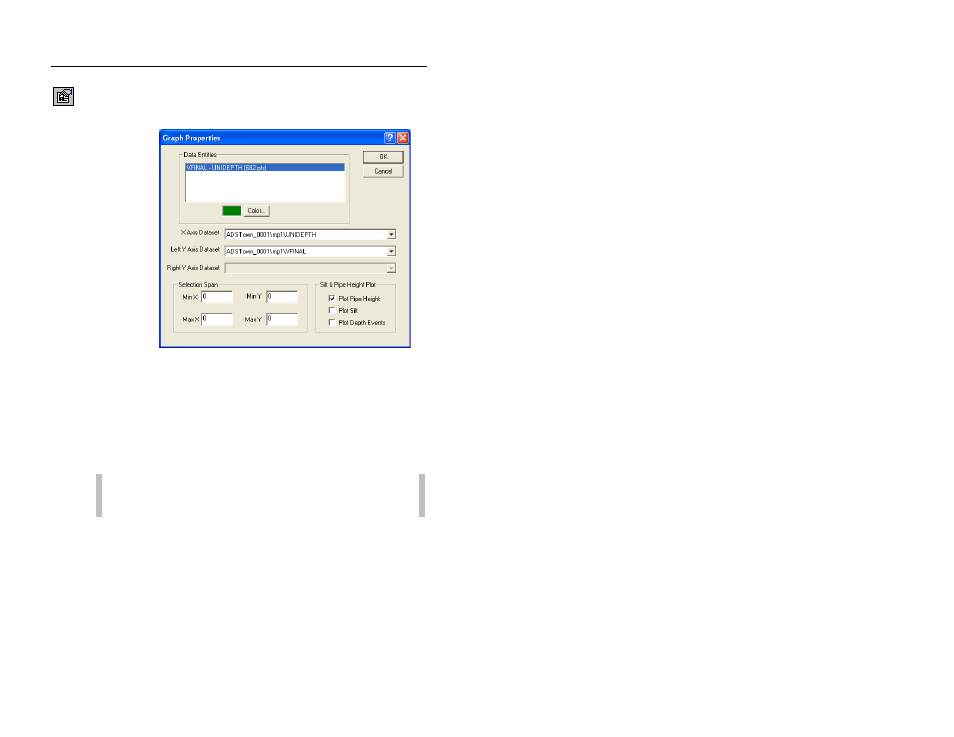

Graph Properties dialog

2. Select the depth data entity from the X Axis Dataset drop-

down list.

3. Select the velocity data entity from the Left Y Axis Dataset

drop-down list.

4. Choose a third data entity for the Right Y Axis Dataset when

you have three data entities displaying on the scattergraph.

Note: You can perform edits when displaying a
maximum of two data entities on the scattergraph.

5. Select OK to close and exit the dialog.
