Diagnostics

6-43

CONFIDENTIAL – Covered by ADS Software License Agreement

Note: Not all ADS monitors support the Capture
Waveform function.

Note: This function is typically used by experienced
technicians troubleshooting sensor problems; therefore, a
common user typically would not exercise this function.

Capture ultrasonic and velocity waveforms in the following way:

1. Select the Connect button to establish communication with the

monitor.

Profile initiates communication with the monitor and establishes a
connection. Choose the Abort button prior to establishing a
connection to abort the communication attempt.

2. Select Waveforms from the Functions drop-down list, and then

select the Perform button.

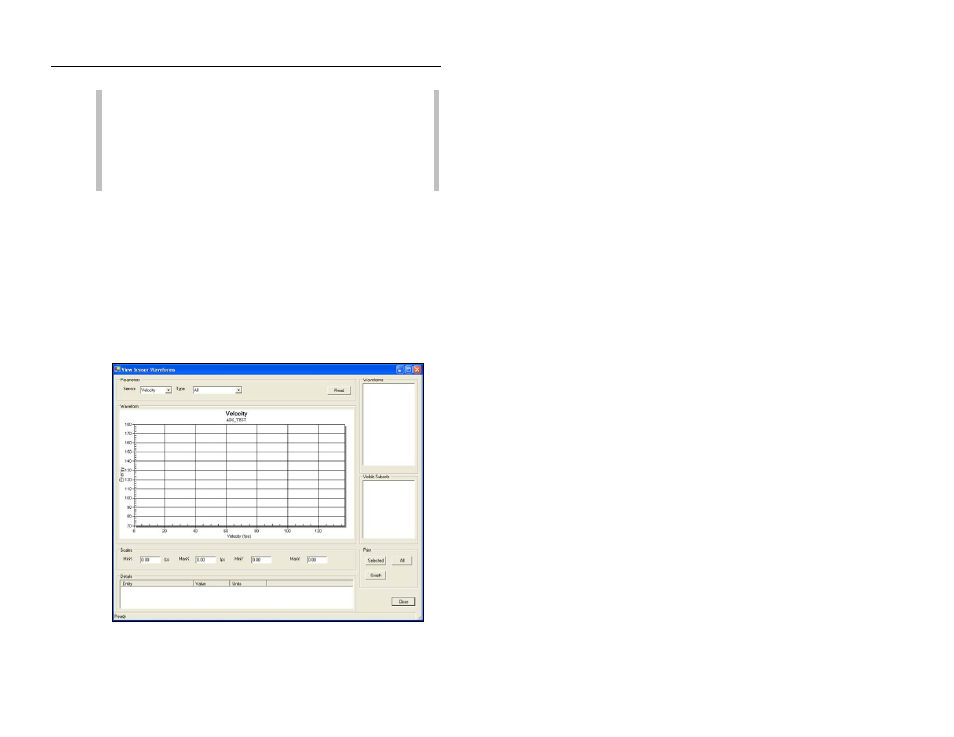

The View Sensor Waveforms dialog displays.

View Sensor Waveforms dialog
