Diagnostics

6-47

CONFIDENTIAL – Covered by ADS Software License Agreement

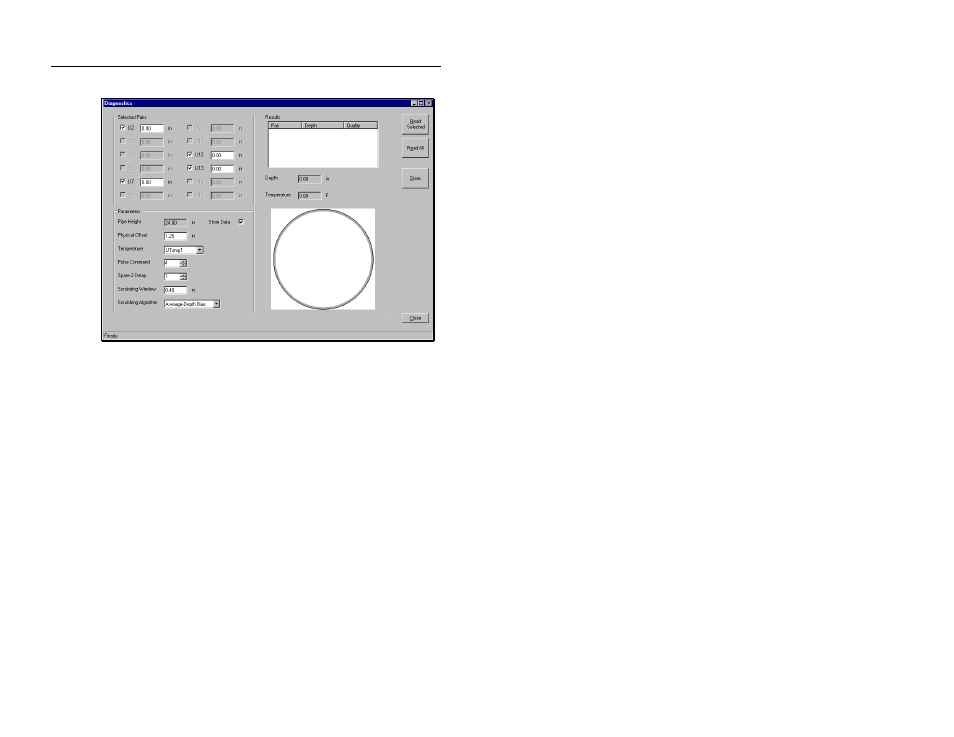

Diagnostics dialog for the Ultrasonic 1 device

3. View current data from and status of the selected device by

selecting the Read or Fire button (or Read Selected for the
Ultrasonic device). If you are requesting readings from an
ultrasonic device, this will return data only for the ultrasonic pairs
designated in the Selected Pairs section. If you want to receive
data for all ultrasonic pairs, select the Read All button instead.

The device results section displays the current readings for the
selected device.
