ADS Environmental Services Profile Software 950015B6 User Manual

Page 217

3-36

Profile Software User's Guide

CONFIDENTIAL – Covered by ADS Software License Agreement

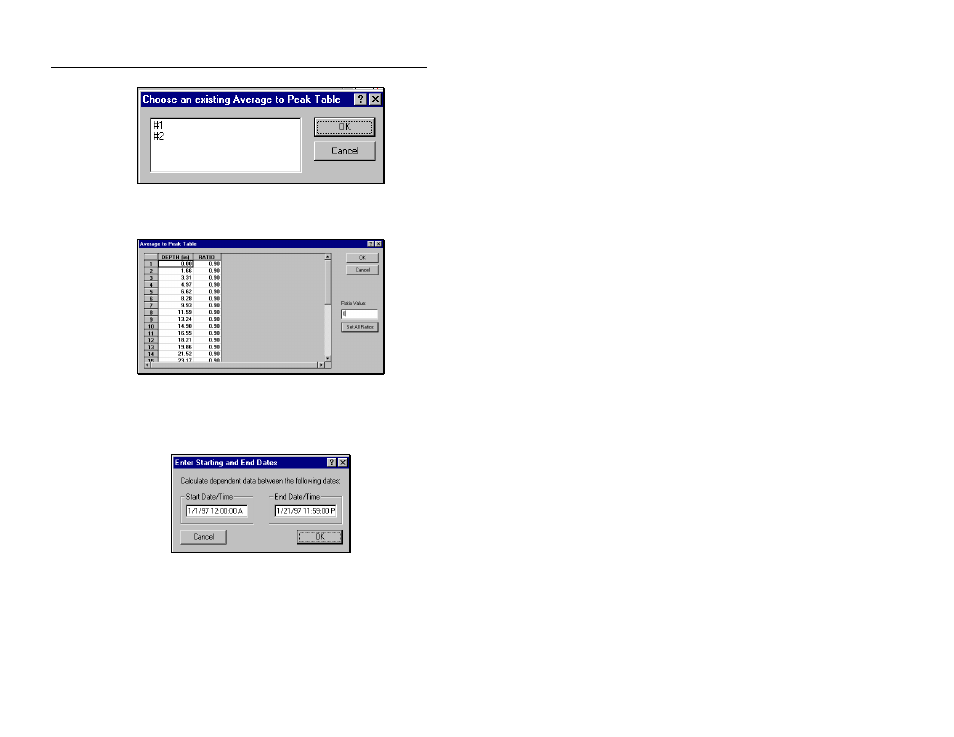

Choose an existing Average-to-Peak Table dialog

3. Select an Average-to-Peak table from the list and then OK to

display the selected table.

Average-to-Peak Table dialog

4. Select OK from the Average to Peak Table window to save

the displayed average-to-peak table as the current table.

The Enter Starting and End Dates dialog displays.

Enter Starting and End Dates dialog

5. Regenerate any dependent data affected by depth and ratio

change(s) by entering the dates of the affected time period into
the Start Date/Time and End Date/Time fields.

The dependent data regenerates.
