2. Select the Edit > Properties option to display the monitoring
point Properties dialog.
3. Select the Schematic button to display the Schematic
Definition dialog.
4. Review the schematic and change, if necessary. Refer to
Creating the Schematic Using the Main Screen, next, for more
information on changing the schematic.
Creating the Schematic Using the Main Screen
Use the Profile main screen to develop a schematic and save it to
the monitoring point. After the schematic is created on the main
screen, it will be available each time you use the Balance
Reporter.
1. From the Profile main screen, select the monitoring point for
which you want to develop the schematic.
2. Select the Edit > Properties option.
3. Select the Schematic button to display the Schematic
Definition dialog.

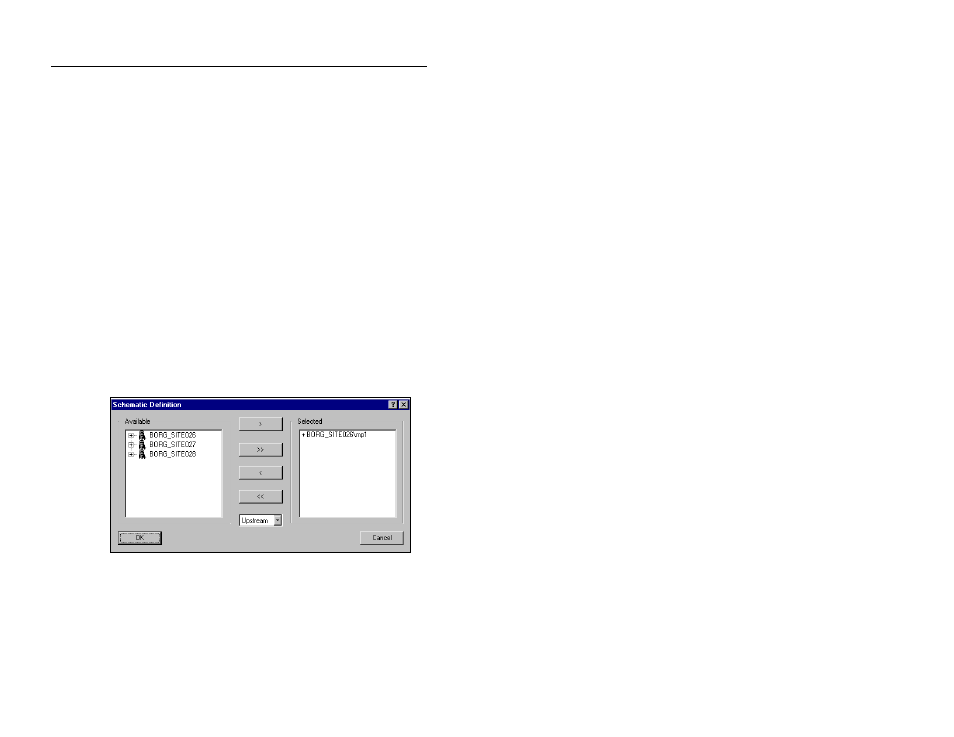

Schematic Definition dialog
4. Develop the schematic by selecting the upstream and overflow
monitoring points from the Available list and adding them to
the Selected list using the > button. Each time you add a
monitoring point to the Selected list, indicate the type of
monitoring point you are adding by selecting Upstream or
